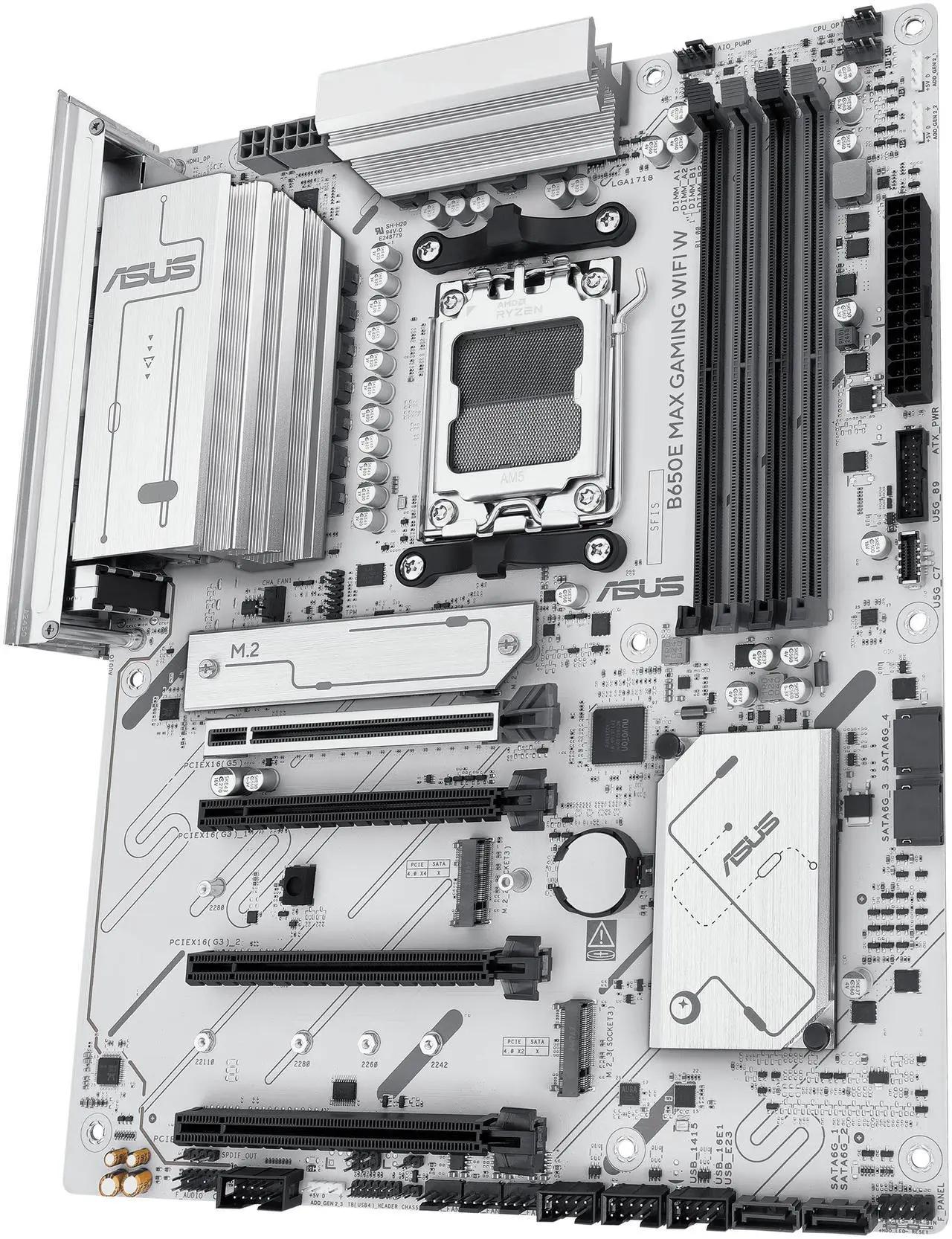

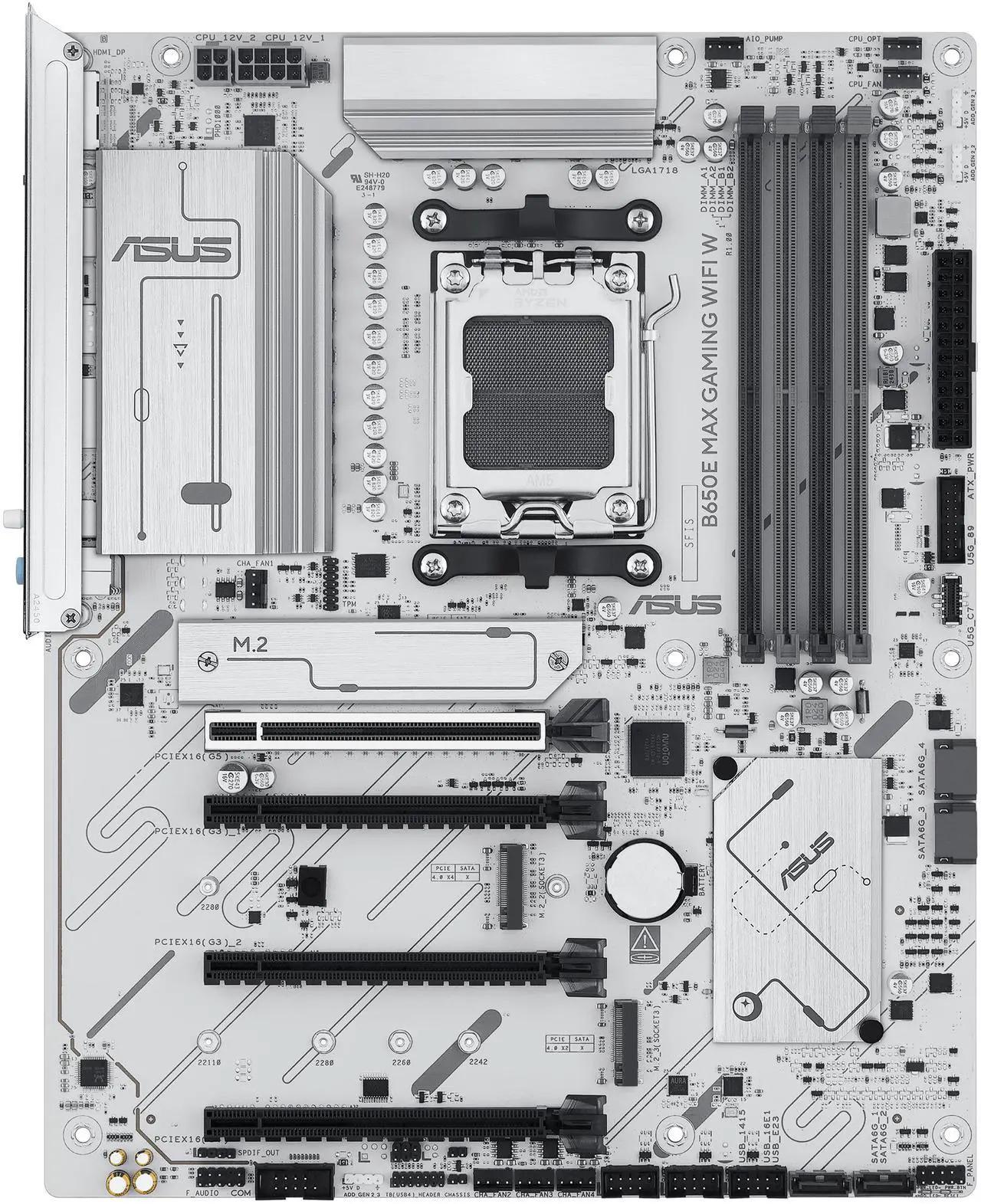

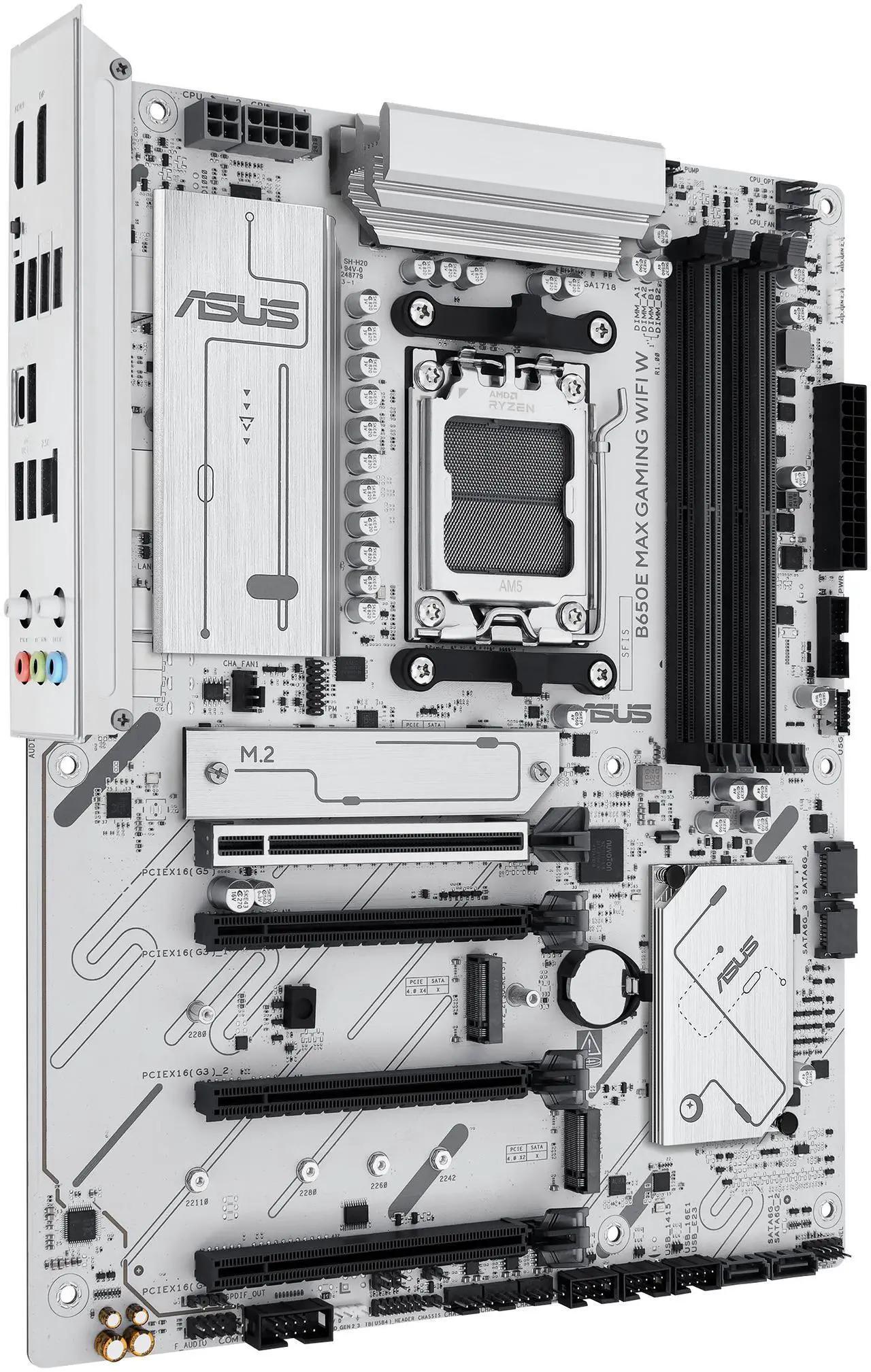

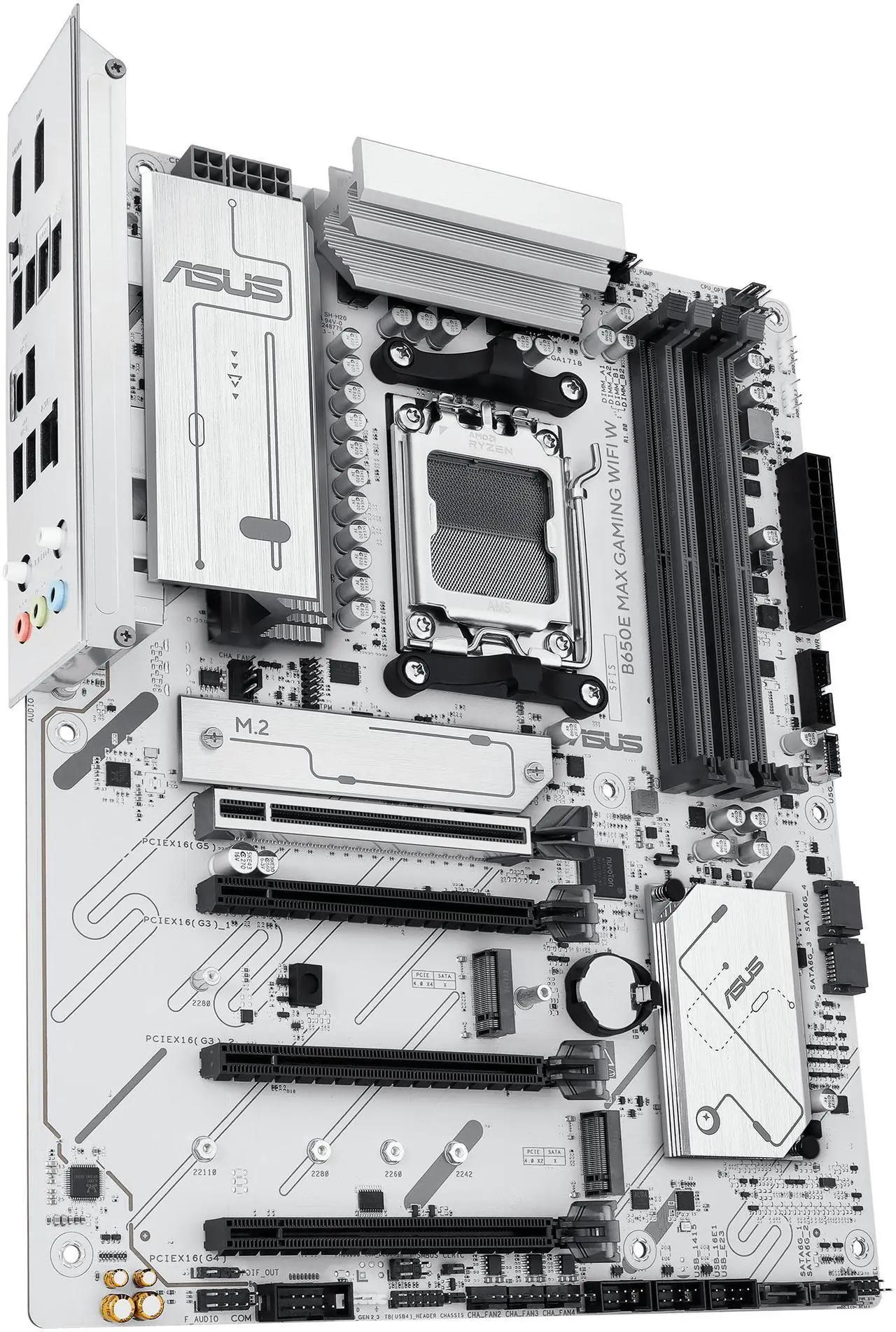

ASUS B650E MAX GAMING WIFI W - AM5, PCIe 5.0, ATX Motherboard (White)

Supported CPU

Memory

Expansion Slots

PCI Express 5.0 x16 AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

PCI Express 4.0 x16 AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (support x4 mode)

PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (support x1 mode)***

Storage Devices

Serial ATA (SATA) 4 x SATA 6Gb/s

M.2 AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)

Onboard Audio

Audio Channels Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN

Max LAN Speed 2.5Gbps

Wireless LAN Wi-Fi 802.11 ax

Bluetooth Bluetooth 5.3

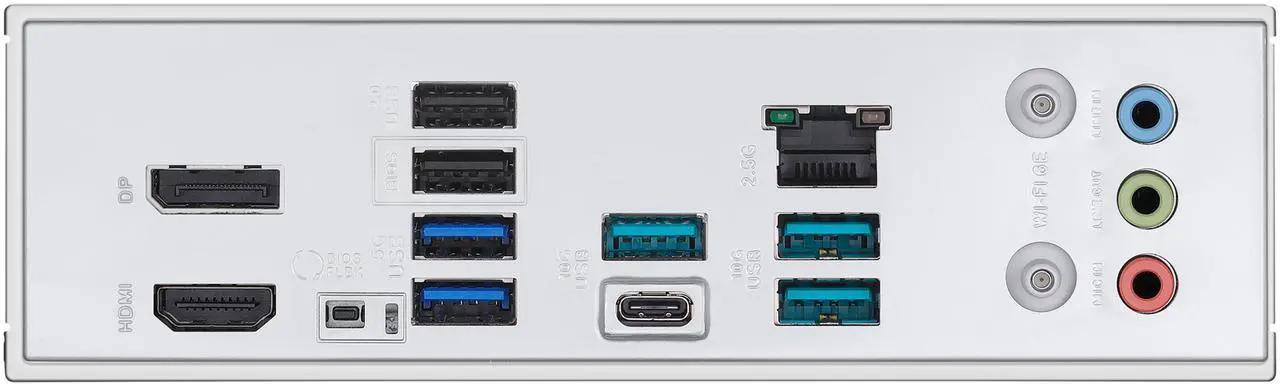

Rear Panel Ports

Back I/O Ports 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C)

2 x USB 5Gbps ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

Internal I/O Connectors

Onboard USB 1 x USB 5Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Other Connectors Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan header

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin System Panel header

1 x Thunderbolt (USB4) header

Physical Spec

1 x 8-pin +12V CPU Power connectors

1 x 4-pin +12V CPU Power connectors

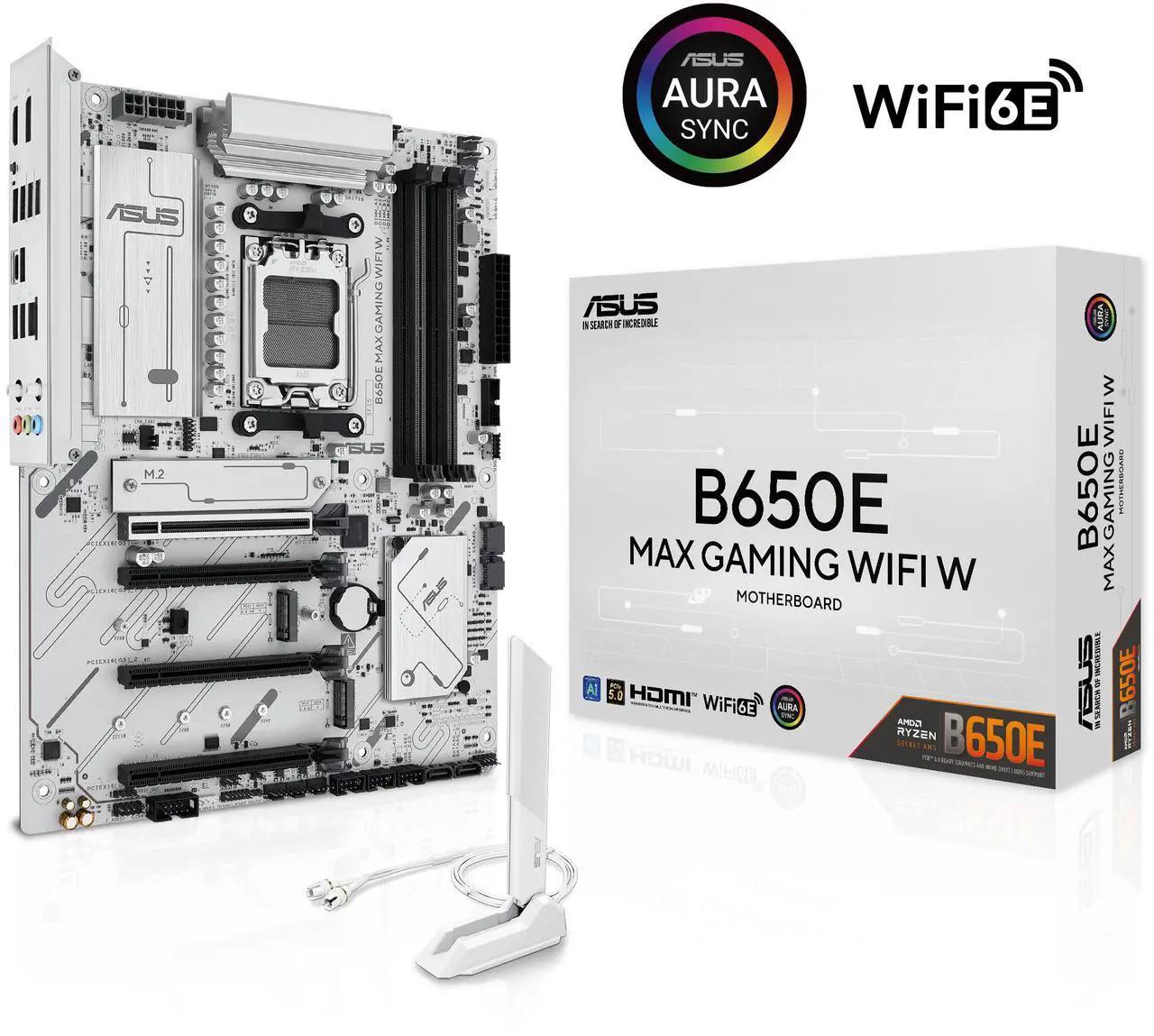

Packaging

Package Contents Cables

2 x SATA 6Gb/s cables

Miscellaneous

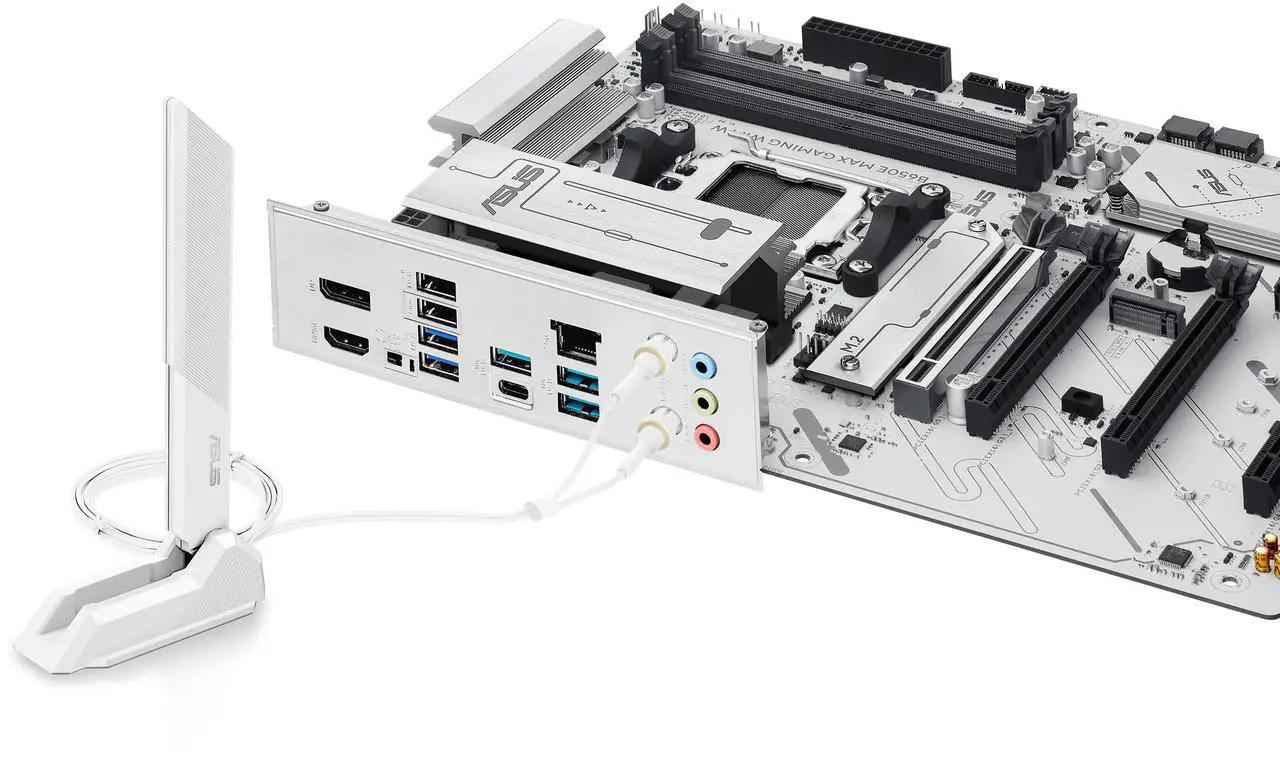

1 x ASUS WiFi Q-Antenna

1 x M.2 rubber packages

3 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide
