Home motherboardsASUS ROG Strix B650-A Gaming WiFi AMD

ASUS ROG Strix B650-A Gaming WiFi AMD

325,000 IQD

Brand:ASUS

Series:ROG

Model:STRIX B650-A GAMING WIFI

Part Number:90MB1BP0-M0AAY0

Supported CPU

CPU Socket Type:AM5

CPU Type:Supports AMD Ryzen 7000 Series Desktop Processors*

Chipsets

Chipset:AMD B650

Memory

Number of Memory Slots:4x288pin (DDR5)

Memory Standard:DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800

Maximum Memory Supported:128GB

Channel Supported:Dual Channel

Memory Performance Profile:AMD EXPO

ECC Supported:Yes

Buffer Supported:Un-buffered

Memory Feature:Supports AMD EXTended Profiles for Overclocking (EXPO)

OptiMem:II

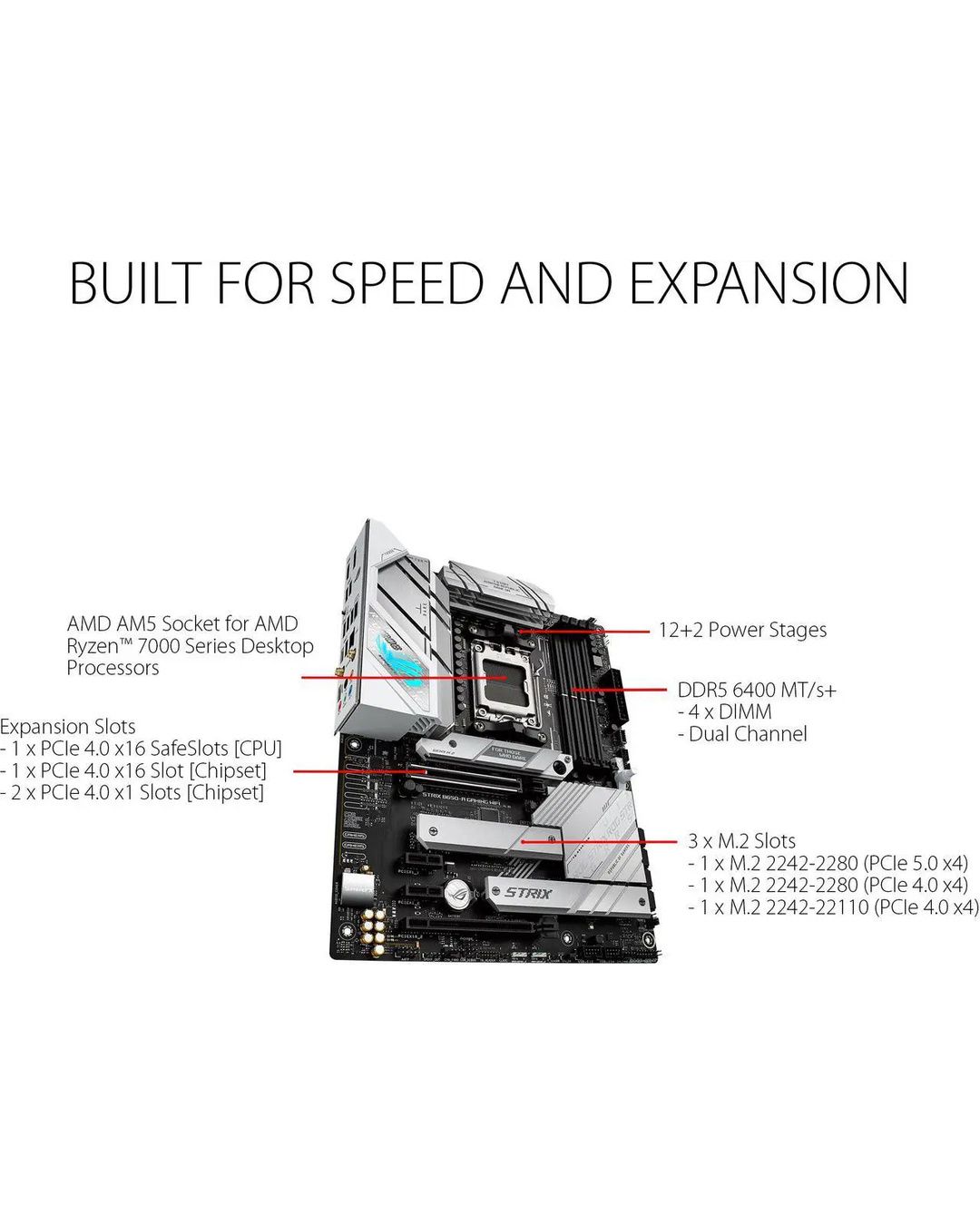

Expansion Slots

PCI Express 5.0 x16:1 x PCI Express 5.0 x16

PCI Express 4.0 x16:AMD Ryzen 7000 Series Desktop Processors

1 x PCIe 4.0/3.0 x16 slot

AMD B650 Chipset

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)*

PCI Express 3.0 x16:1 x PCI Express 3.0 x16

PCI Express 2.0 x16:1 x PCI Express 2.0 x16

PCI Express x16:1 x PCI Express x16

PCI Express x4:3 x PCI Express x4

PCI Express x1:2 x PCIe 4.0/3.0 x1 slots

PCI Slots:1 x PCI Slot

Storage Devices

Serial ATA (SATA):4 x SATA 6Gb/s

M.2 AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)**

SATA RAID AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

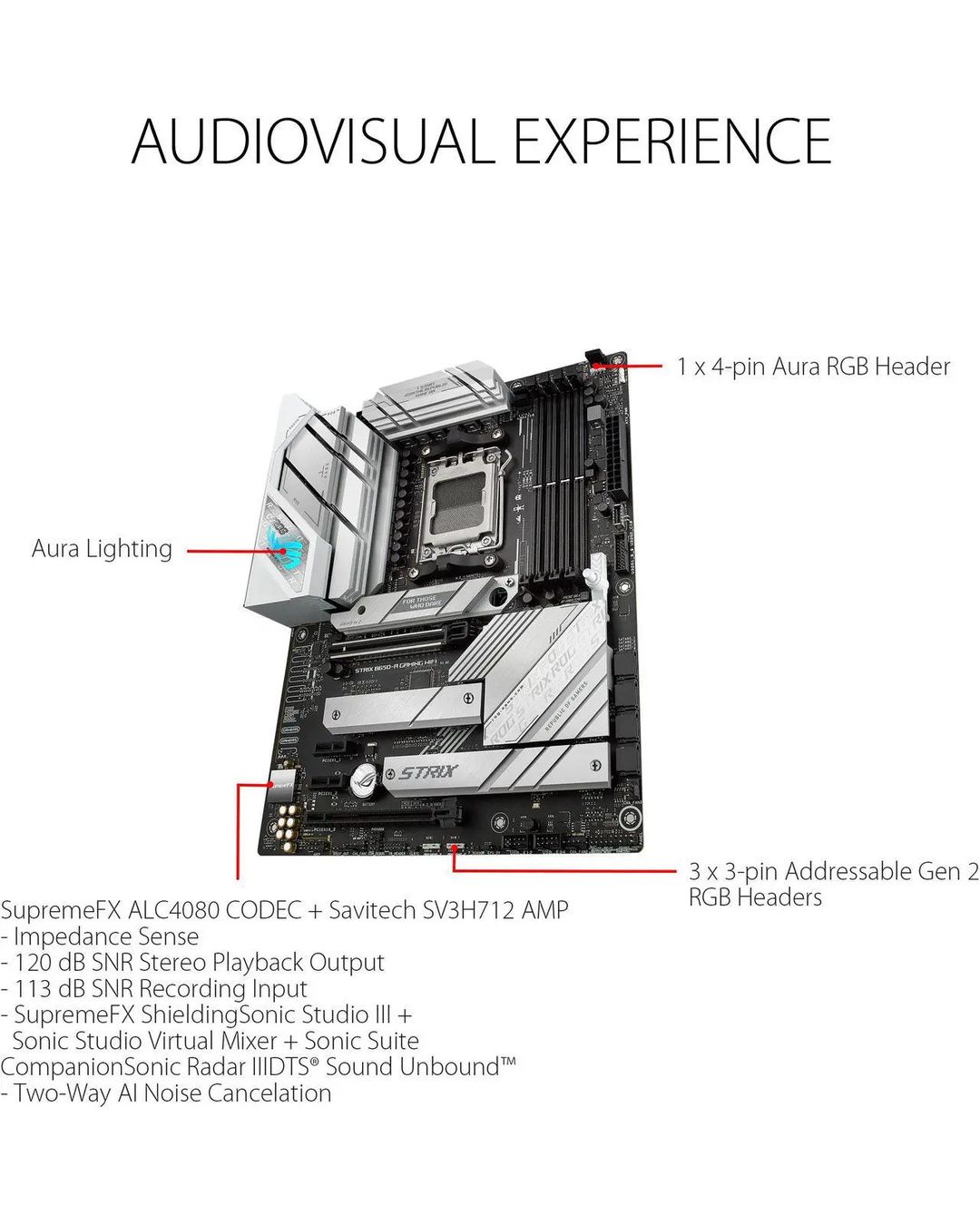

Onboard Audio

Audio Chipset:Realtek ALC4080

Audio Channels:ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Audio cover

Onboard LAN

Max LAN Speed:2.5Gbps

Wireless LAN:Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth:Bluetooth v5.2

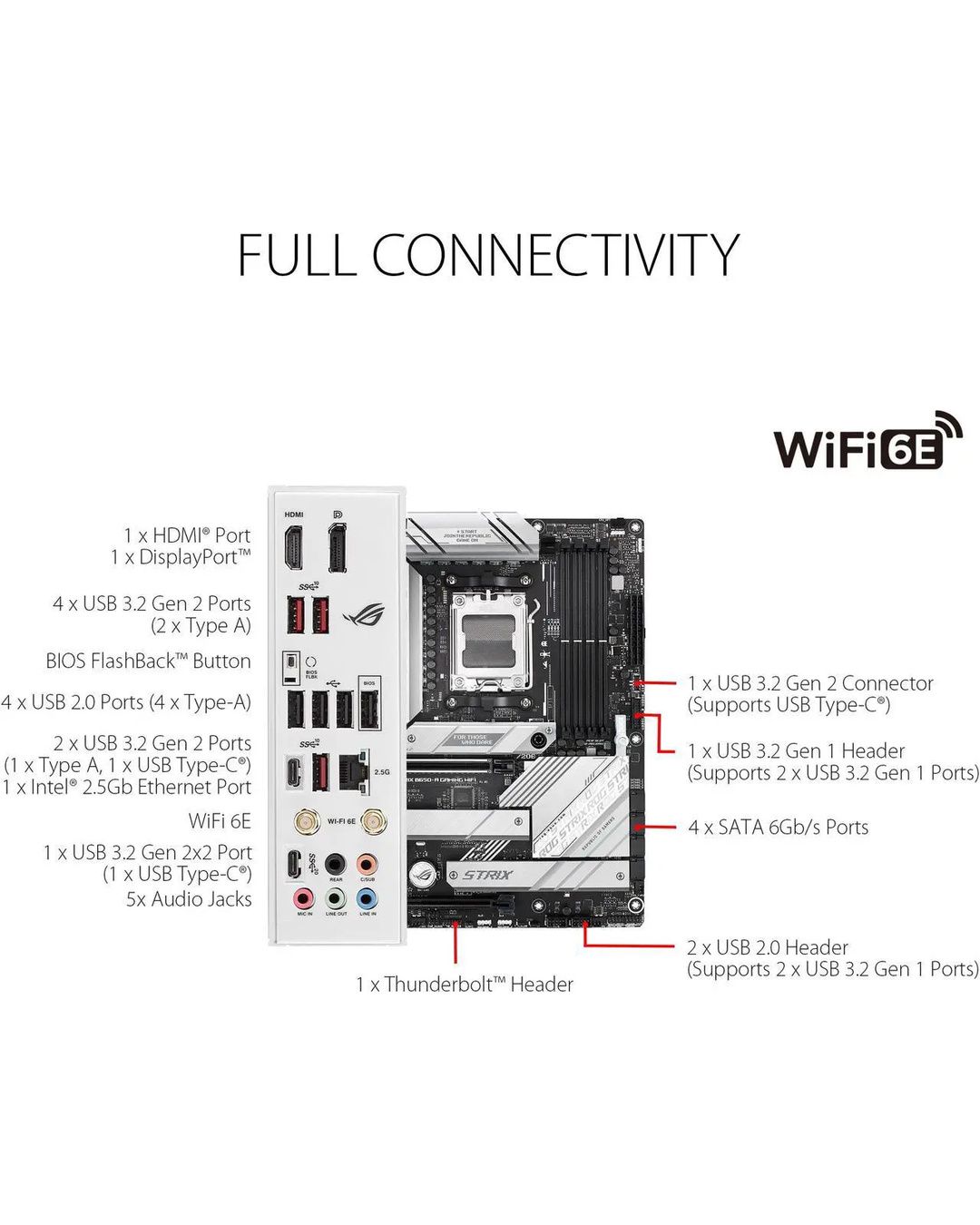

Rear Panel Ports

Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel I225-V 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack button

COM 3

Video Ports 1

HDMI 1 x HDMI

RJ45 1 x RJ45

USB 3.1 2 x USB 3.1

USB 3.0 10 x USB 3.0

USB 1.1/2.0 9 x USB 2.0

S/PDIF Out 1 x Optical, 1 x Coaxial

S/PDIF In 1 x Optical, 1 x Coaxial

Audio Ports 6 Ports

Internal I/O Connectors

Onboard USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C )

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

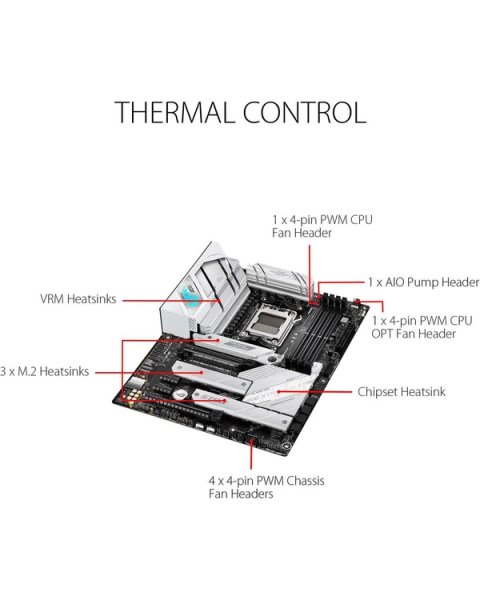

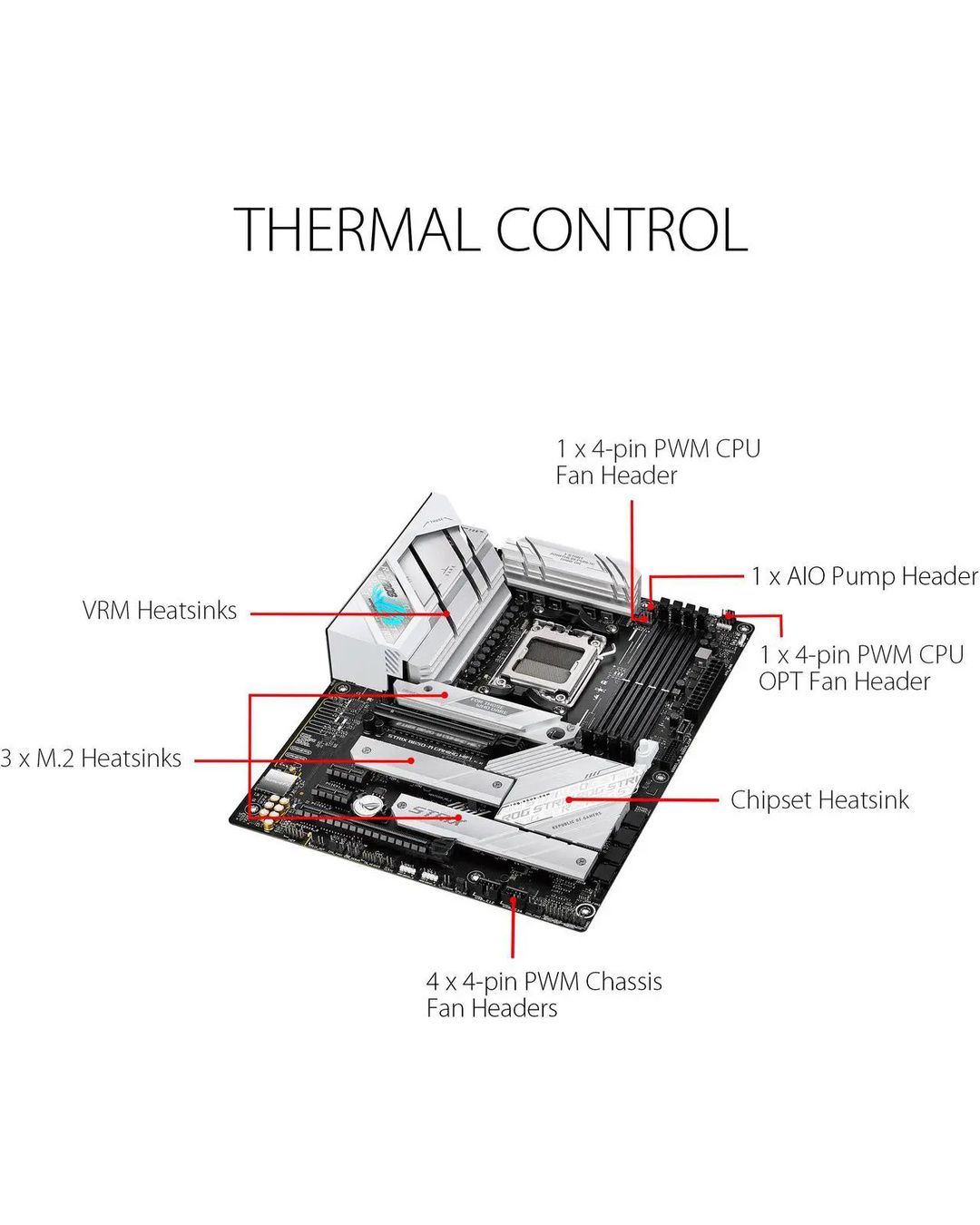

Other Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

Miscellaneous

3 x Addressable Gen 2 header

1 x AURA RGB headers

1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header

1 x COM_DEBUG header

Physical Spec

Form Factor:ATX

Dimensions (W x L):12.0" x 9.6"

Power Pin:1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

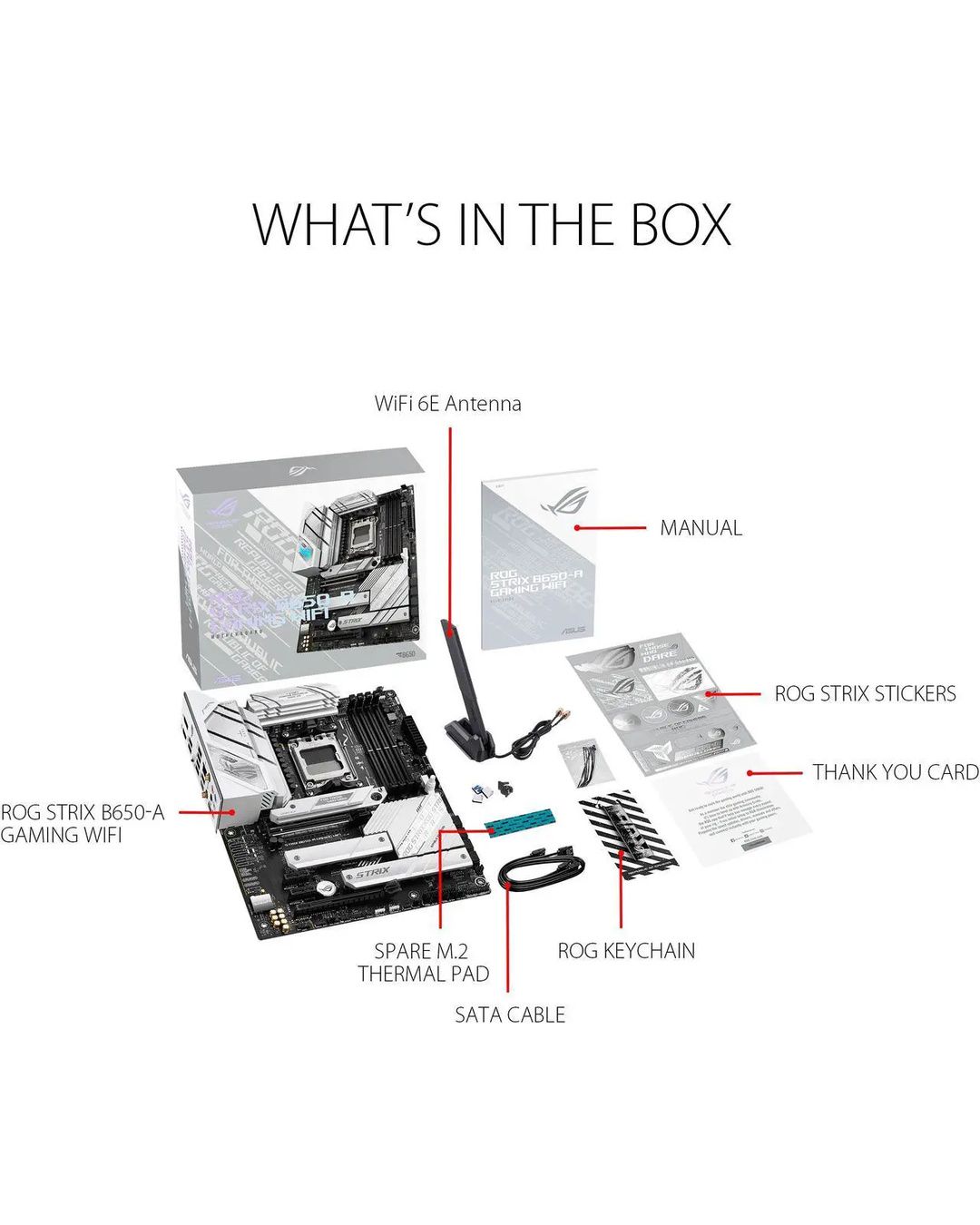

Packaging

Package Contents Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x Rubber Packages for M.2

Documentation

1 x User guide
