ASUS ROG STRIX B850-A GAMING WIFI R2 AM5

380,000 IQD

Brand:ASUS

Model:ROG STRIX B850-A GAMING WIFI R2

Supported CPU

CPU Socket Type:AM5

CPU Type:Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Memory

Number of Memory Slots:4x288pin (DDR5)

Memory Standard Supports:up to 8000+MT/s(OC)

Maximum Memory Supported:256GB

Channel Supported:Dual Channel

ECC Supported:Yes

Buffer Supported:Un-buffered

Memory Feature:Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Expansion Slots

PCI Express 5.0 x16 AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)**

PCI Express 4.0 x16 AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)*

* PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3

Storage Devices

Serial ATA (SATA) 2 x SATA 6Gb/s

M.2 AMD Ryzen 7000 & 9000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)

M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)

M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**

M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)

Onboard Audio

Audio Channels ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Onboard LAN

Max LAN Speed:2.5Gbps

Wireless LAN:Wi-Fi 802.11 be

Bluetooth:Bluetooth 5.4

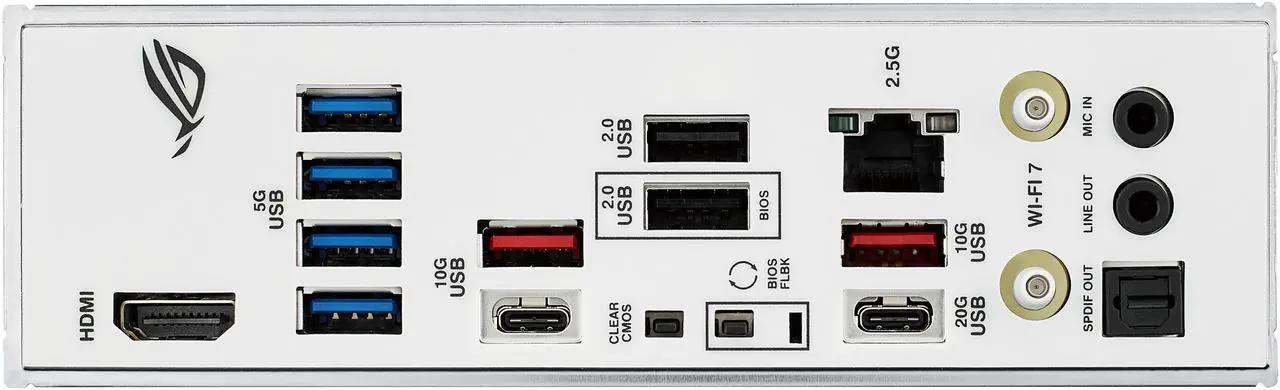

Rear Panel Ports

Back I/O Ports 1 x USB 20Gbps port (1 x USB Type-C)

3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Internal I/O Connectors

Onboard USB 1 x USB 10Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Other Connectors Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Miscellaneous

3 x Addressable Gen 2 headers

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Power button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt (USB4) header

Physical Spec

Form Factor:ATX

Dimensions (W x L):12.0" x 9.6"

Power Pin:1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Packaging

Package Contents Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

4 x M.2 rubbers

Documentation

1 x Quick start guide
