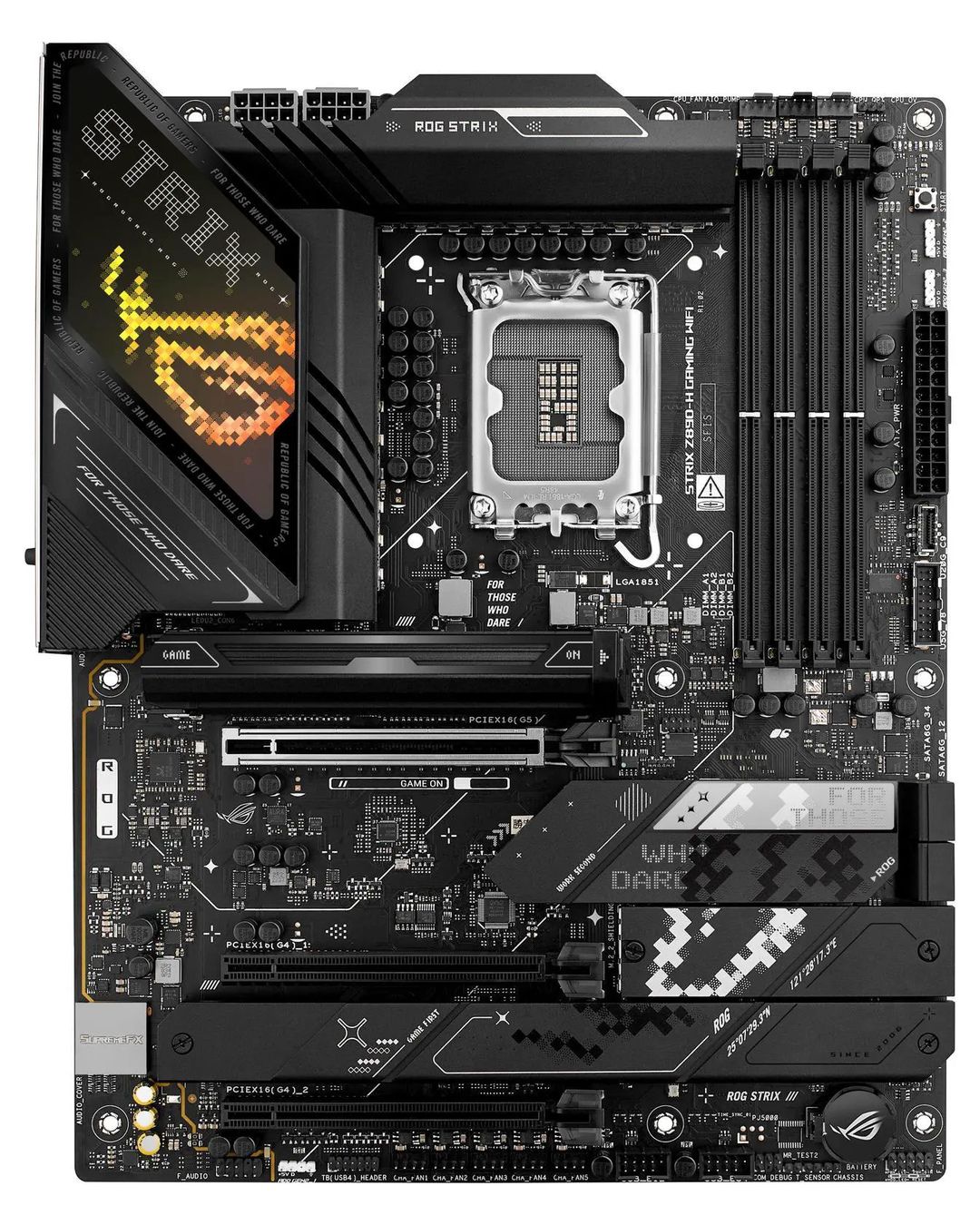

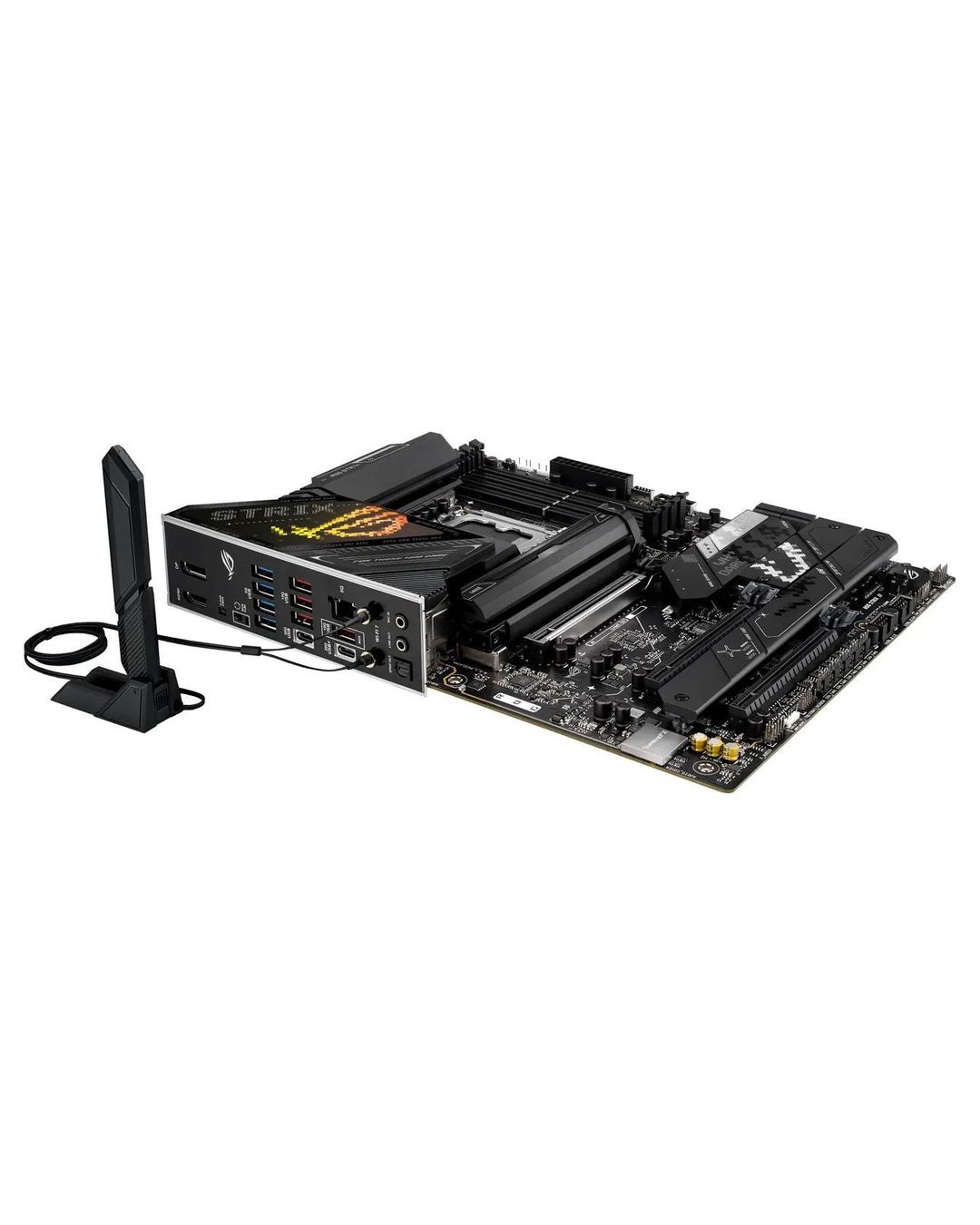

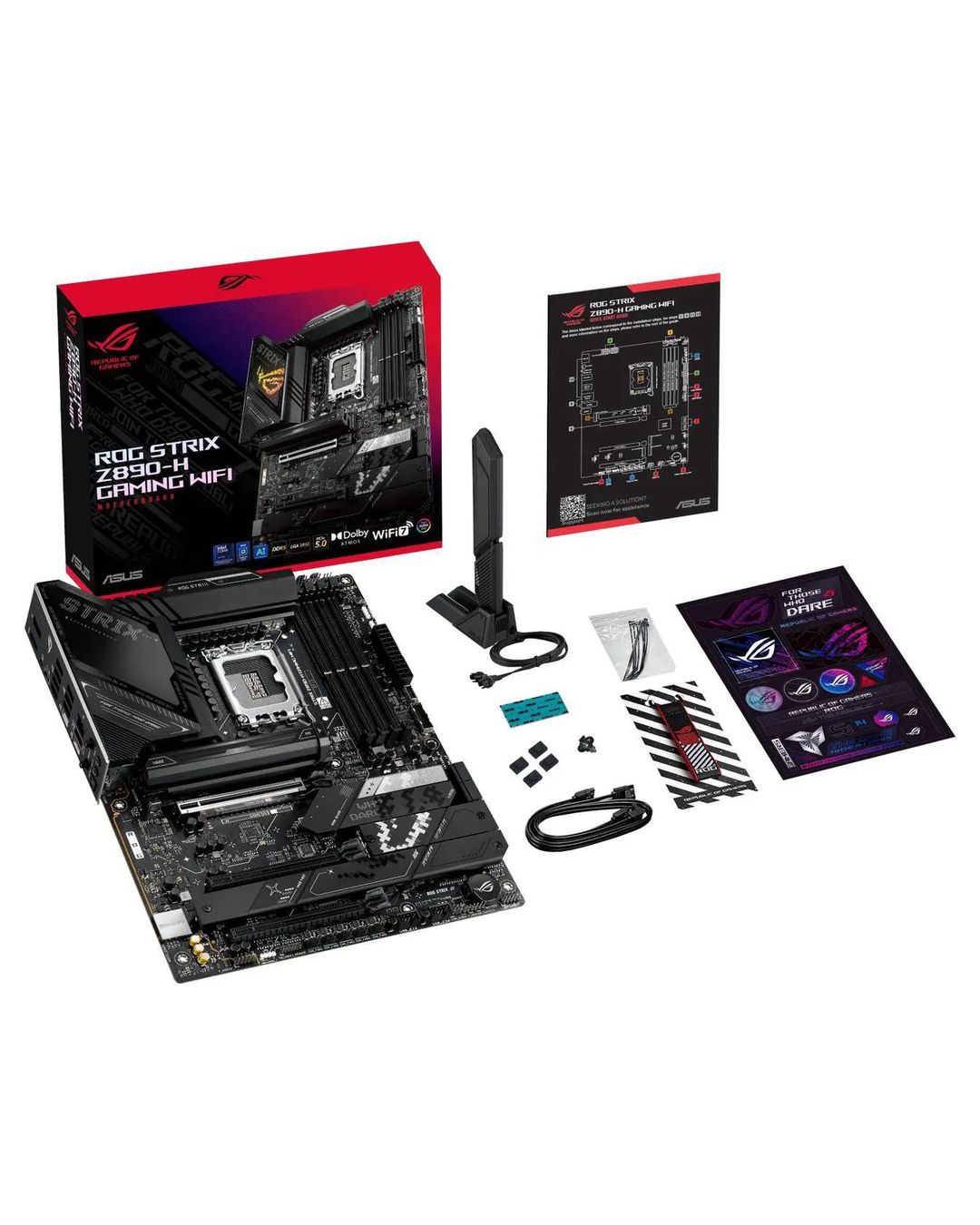

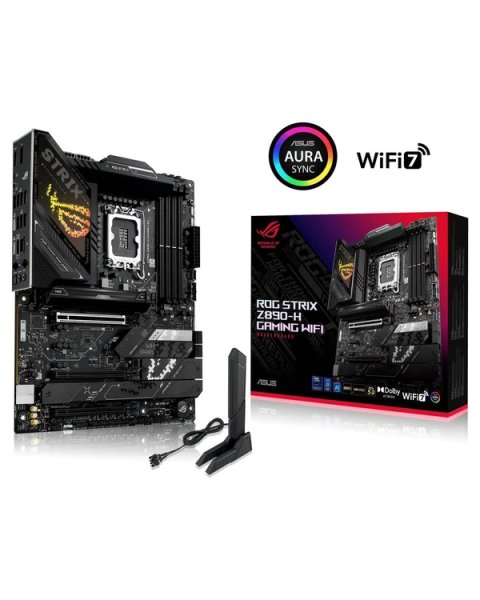

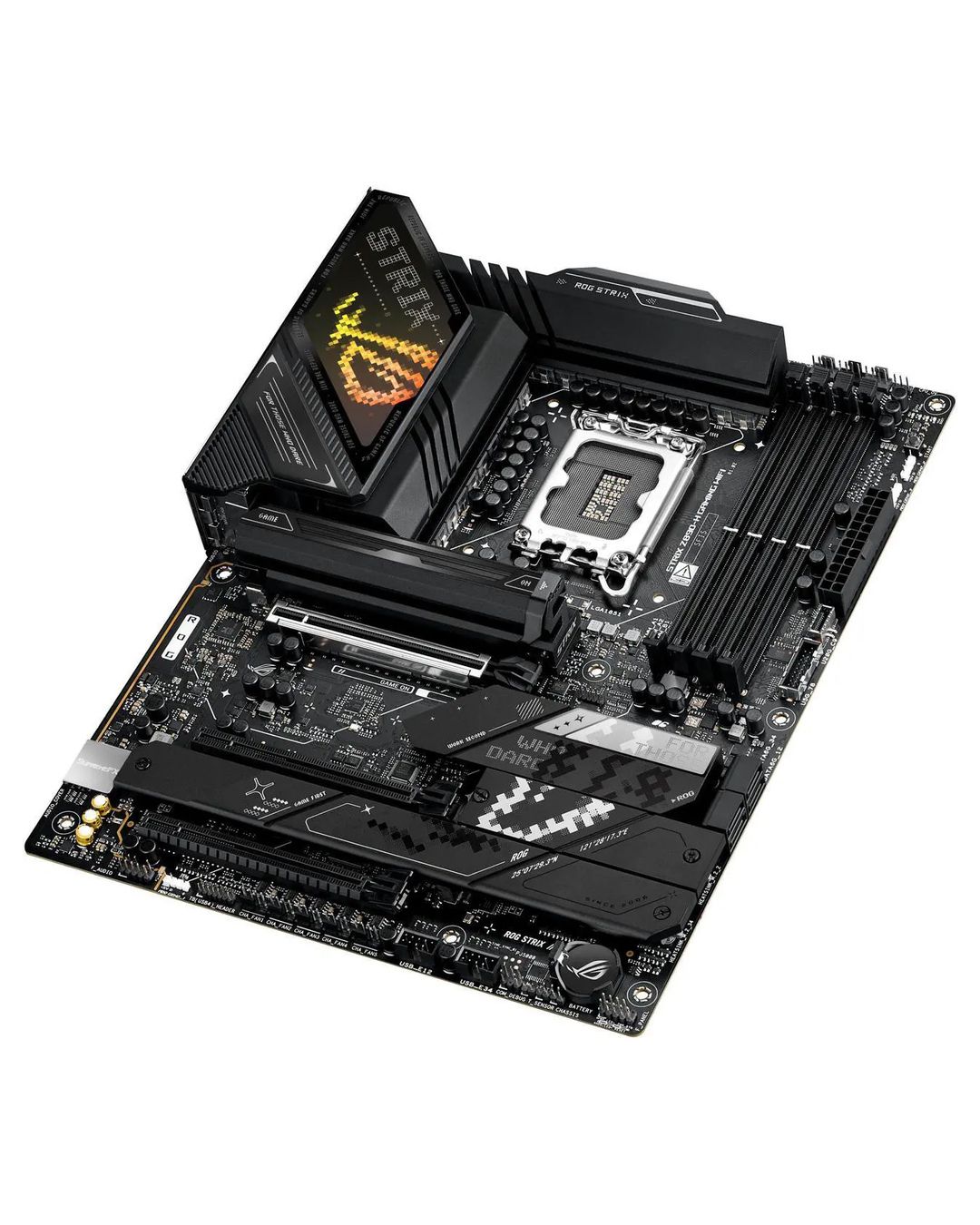

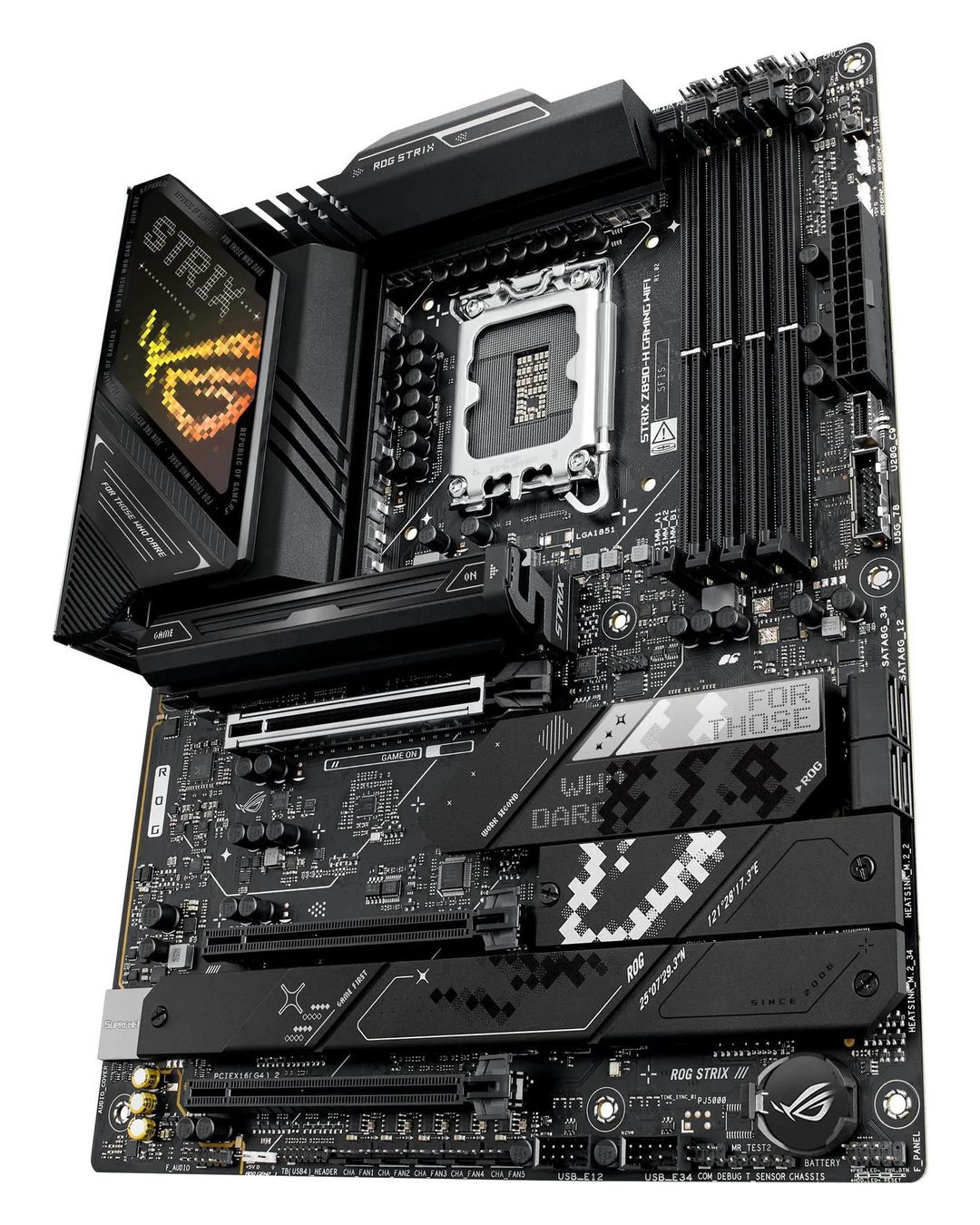

ASUS ROG STRIX Z890-H GAMING WIFI

Supported CPU

Chipsets

Memory

Supports DIMM Flex

DIMM Fit

ASUS Enhanced Memory Profile III (AEMP III)

Expansion Slots

1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

2 x PCIe 4.0 x16 slots (supports x4 mode)

Storage Devices

Serial ATA (SATA) 4 x SATA 6Gb/s

M.2 Intel Core Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

Onboard Audio

Audio Channels Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Onboard LAN

Max LAN Speed 5Gbps

Wireless LAN Wi-Fi 802.11 be

Bluetooth Bluetooth 5.4

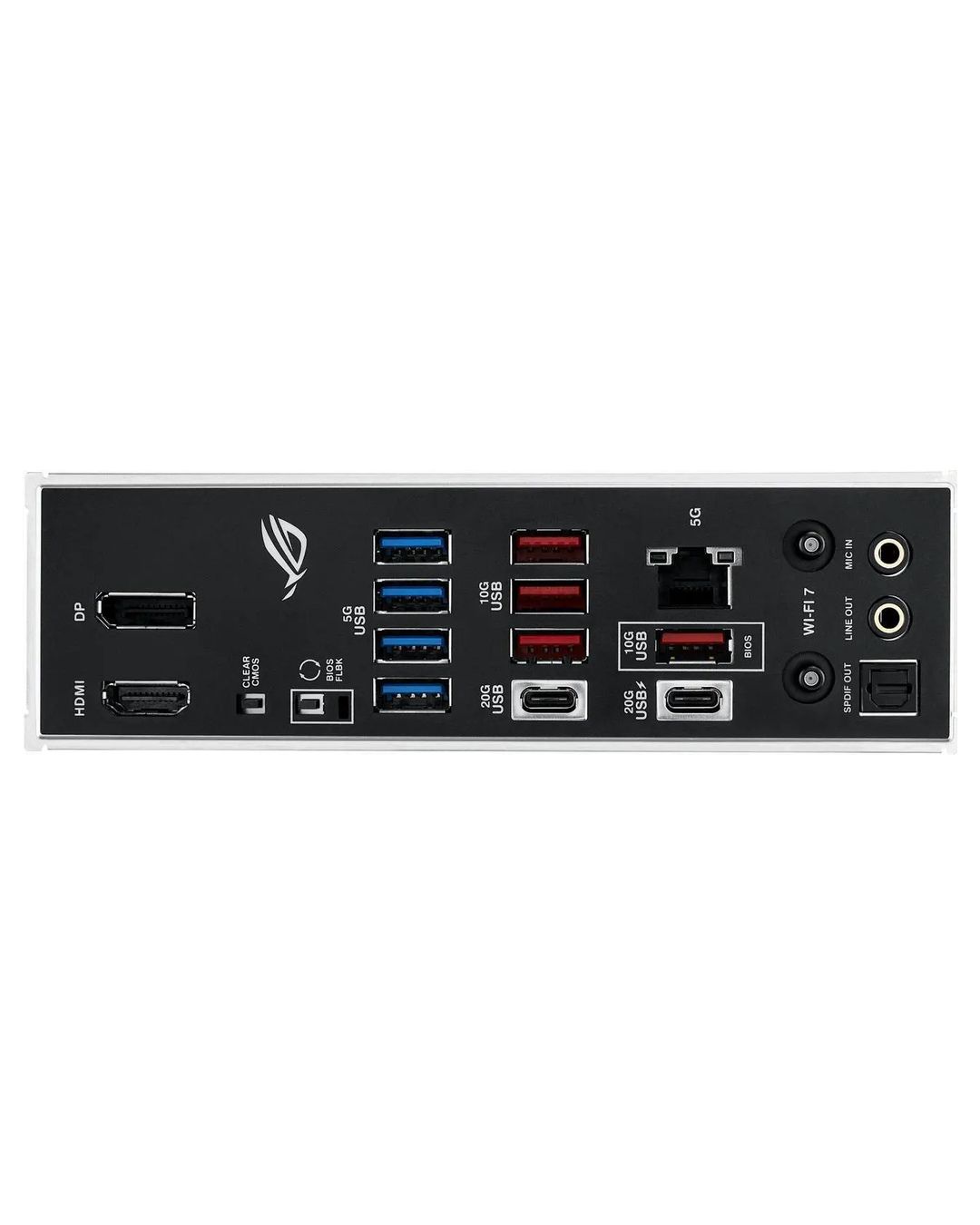

Rear Panel Ports

Back I/O Ports 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge**)

4 x USB 10Gbps ports (4 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Internal I/O Connectors

Onboard USB 1 x USB 20Gbps connector (supports USB Type-C)

1 x USB 5Gbps header support 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Other Connectors Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan header

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Chassis Intrusion header

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt (USB4) header

Software Feature

BIOS Feature 256 Mb Flash ROM, UEFI AMI BIOS

Software ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- HWiNFO

- Power Saving

- ASUS AI Advisor

- ASUS Driver Hub

- ASUS GlideX

- USB Wattage Watcher

- TurboV Core

- Adobe Creative Cloud (Free Trial)

- Norton 360 for Gamers (60 Days Free Trial)

- WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

NPU Boost

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

FlexKey
