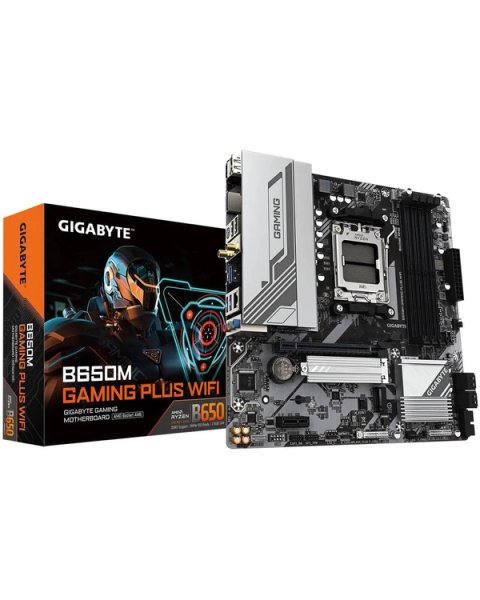

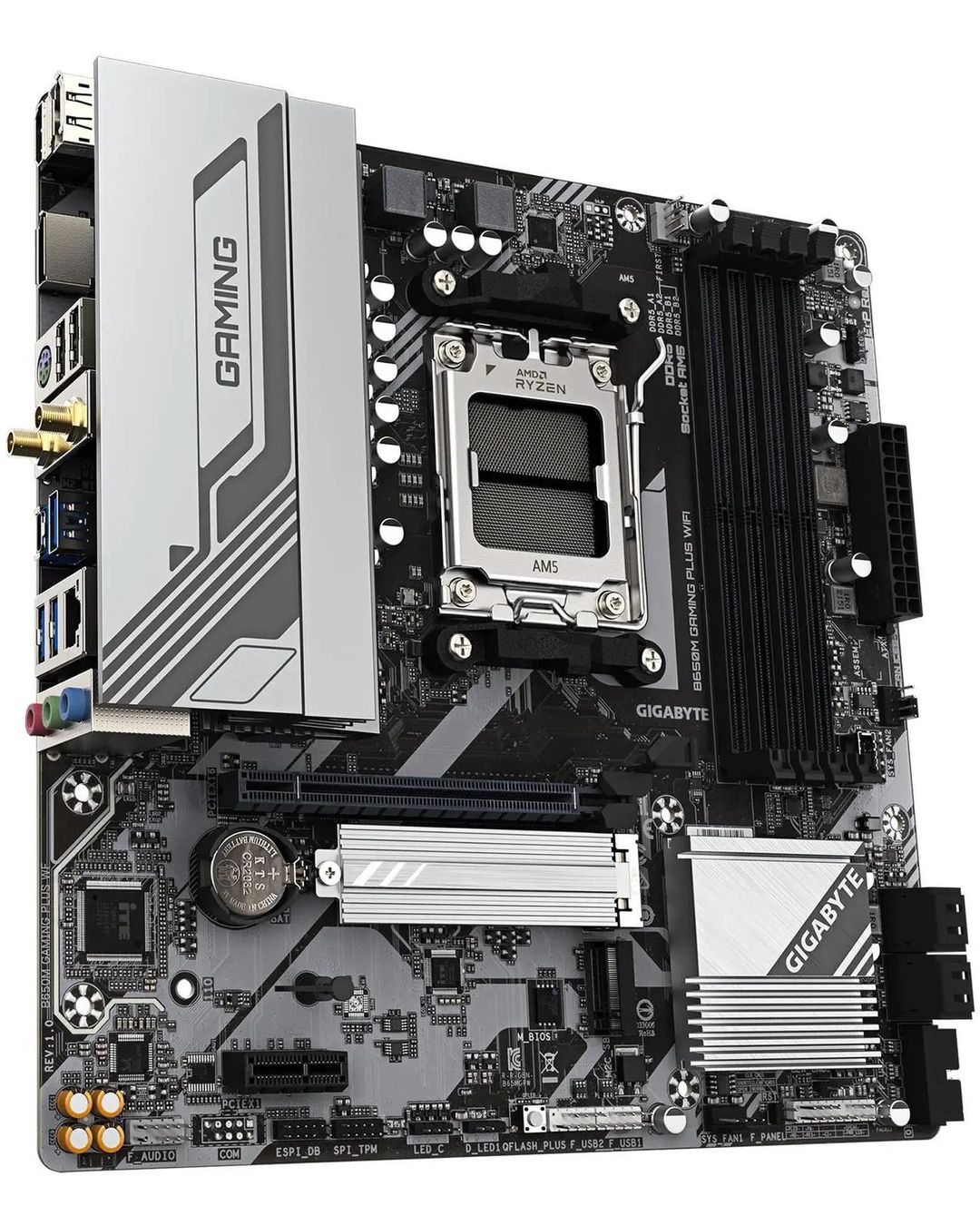

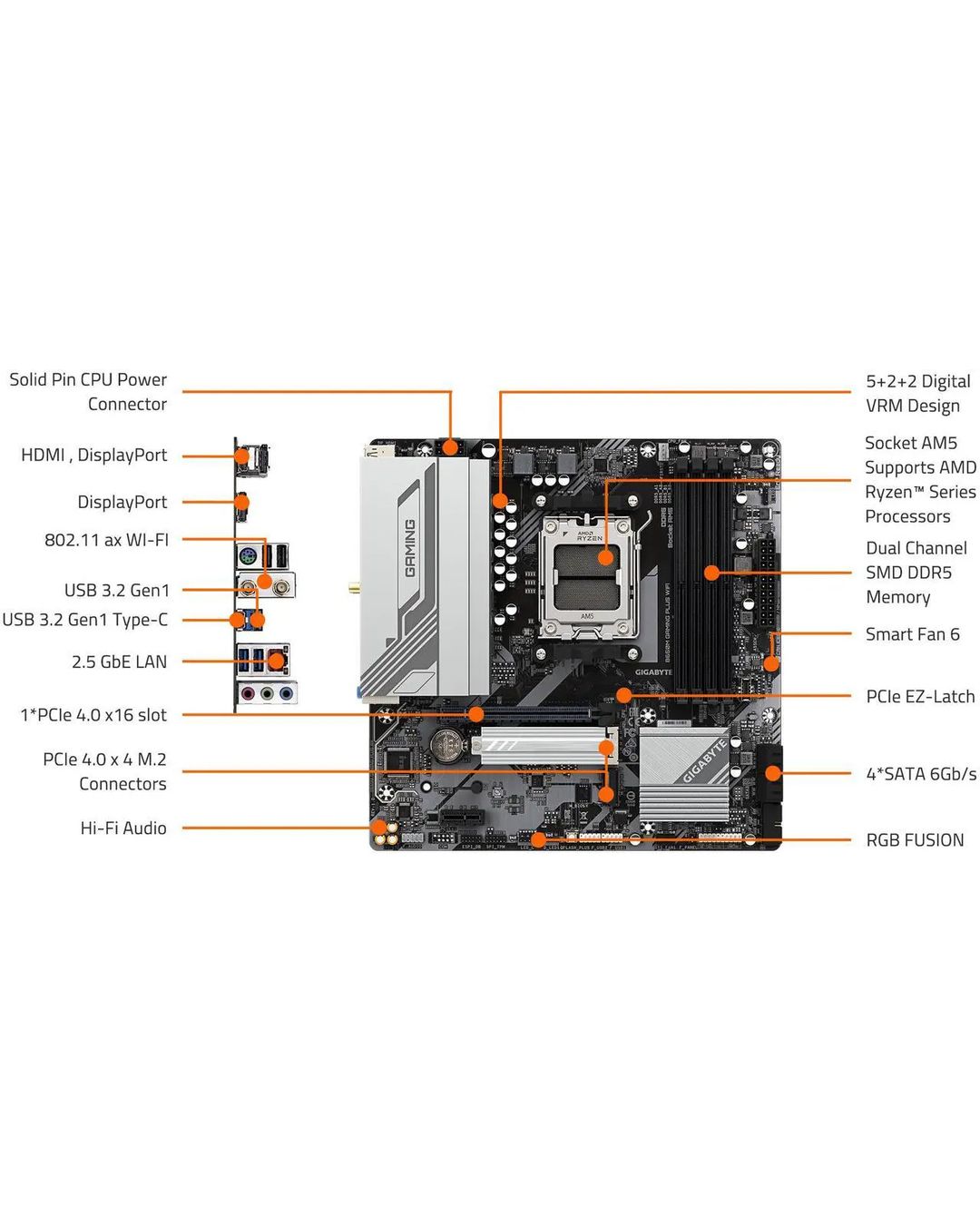

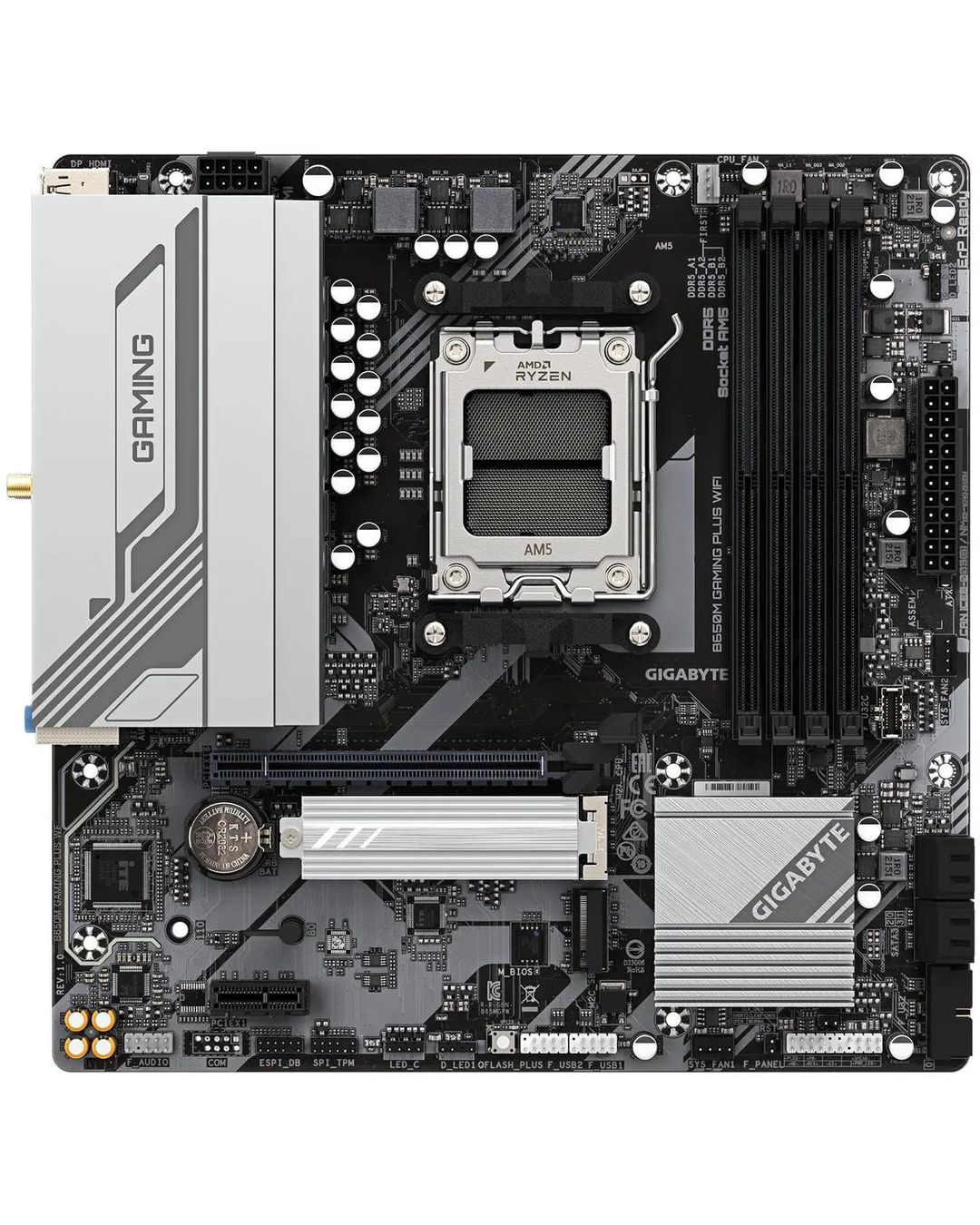

GIGABYTE B650M GAMING PLUS WIFI AM5

190,000 IQD

Brand:GIGABYTE

Model:B650M GAMING PLUS WIFI

Supported CPU

CPU Socket Type:AM5

CPU Type:Ryzen 7000 Series / Ryzen 8000 / Ryzen 9000 Series (Ryzen 9000 may need bios update)

Chipsets

Chipset:AMD B650

Memory

Number of Memory Slots:4x288pin (DDR5)

Memory Standard:DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400

Maximum Memory Supported:192GB

Channel Supported:Dual Channel

Memory Performance Profile:AMD EXPO

Memory Feature:4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme

Memory Profile (XMP) memory modules

Expansion Slots

PCI Express 4.0 x16:1 x PCI Express x16 slot (PCIEX16), integrated in

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

PCI Express x1:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Devices

Serial ATA (SATA):4 x SATA 6Gb/s

M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

SATA RAID:RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Additional RAID Controller:RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

Onboard Audio

Audio Channels:7.1 Channels

Onboard LAN

Max LAN Speed:2.5Gbps

Wireless LAN:Wi-Fi 802.11 ax

Bluetooth:BLUETOOTH 5.3

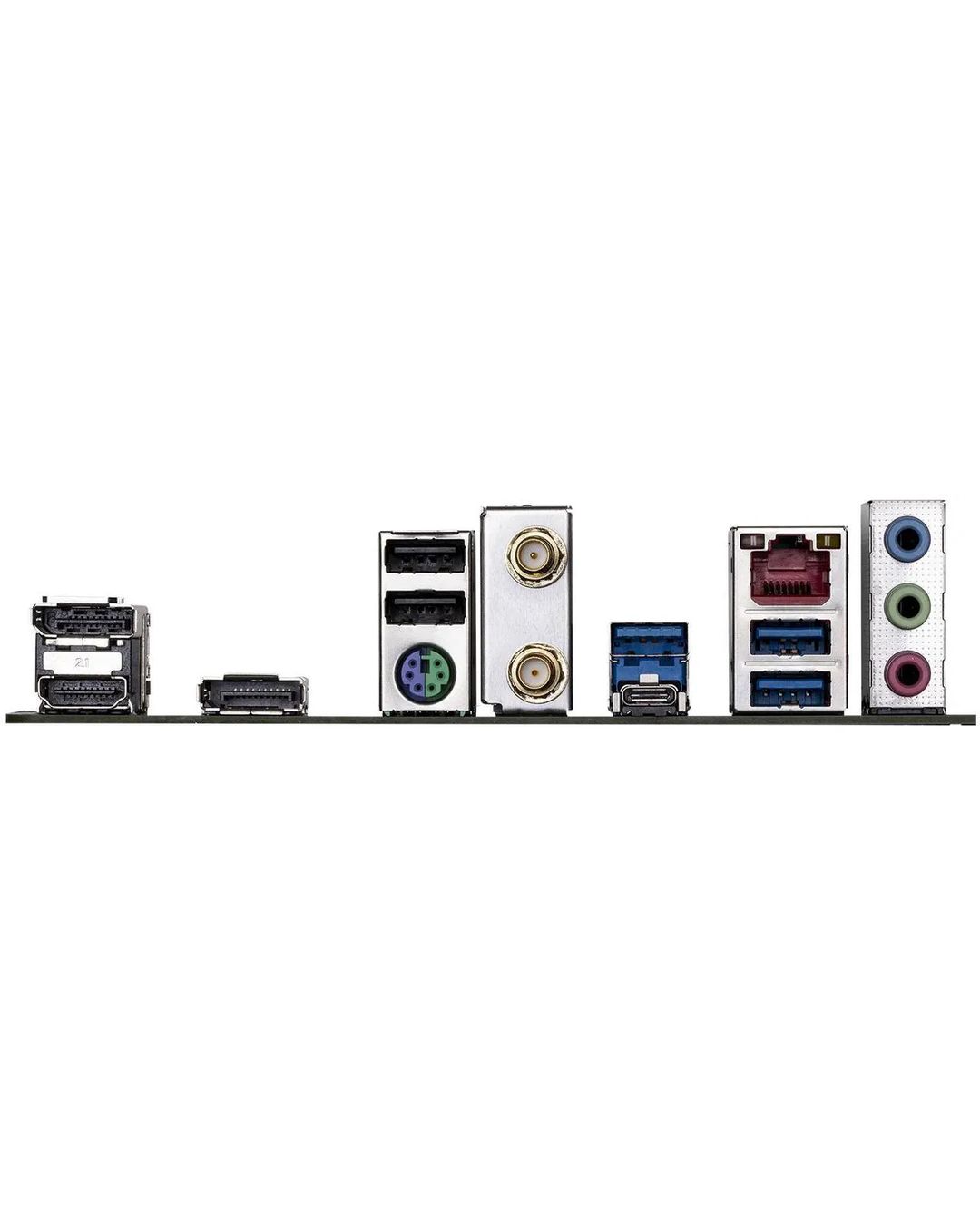

Rear Panel Ports

Back I/O Ports 1 x PS/2 keyboard/mouse port

1 x USB Type-C port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x HDMI port

2 x DisplayPorts

2 x SMA antenna connectors (2T2R)

1 x RJ-45 port

3 x audio jacks

Internal I/O Connectors

Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

Other Connectors 1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Physical Spec

Form Factor:Micro ATX

Dimensions (W x L):9.6" x 9.6"

Power Pin:1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

Software Feature

Windows 11:Support for Windows 11 64-bit

Support for Windows 10 64-bit

Features

Features Support for GIGABYTE Control Center

Support for Q-Flash

Support for Q-Flash Plus
