GIGABYTE B850 AORUS ELITE WIFI7 AM5
380,000 IQD
Brand:GIGABYTE
Series:AORUS
Model:B850 AORUS ELITE WIFI7 ICE
Supported CPU
CPU Socket Type:AM5
CPU Type:Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset:AMD B850
South Bridge:AMD B850
Memory
Number of Memory Slots:4x288pin (DDR5)
Memory Standard:Up to DDR5 8200(O.C)
Maximum Memory Supported 256GB
Channel Supported:Dual Channel
ECC Supported:Non-ECC
Registered:No
Buffer Supported:Un-buffered
Expansion Slots
PCI Express 5.0 x16:1 x PCI Express 5.0 x16
PCI Express 4.0 x16:1 x PCI Express 4.0 x16
PCI Express 3.0 x16:2 x PCI Express 3.0 x16
PCI Express x16:3 x PCI Express x16
PCI Express x1:2 x PCI Express x1
Storage Devices
Serial ATA (SATA):4 x SATA 6Gb/s
M.2 3 x M.2:(Support PCIe 5.0 x4, PCIe 4.0 x4/x2)
SATA RAID:0/1/10
Onboard Video
Onboard Video Chipset:AMD Radeon Graphics
Onboard Audio
Audio Chipset:Realtek ALC1220
Audio Channels:7.1 Channels
Onboard LAN
LAN Chipset:Realtek 2.5GbE
Max LAN Speed:2.5Gbps
Wireless LAN:WiFi IEEE 802.11 a / b / g / n / ac / ax / be
Bluetooth:Yes

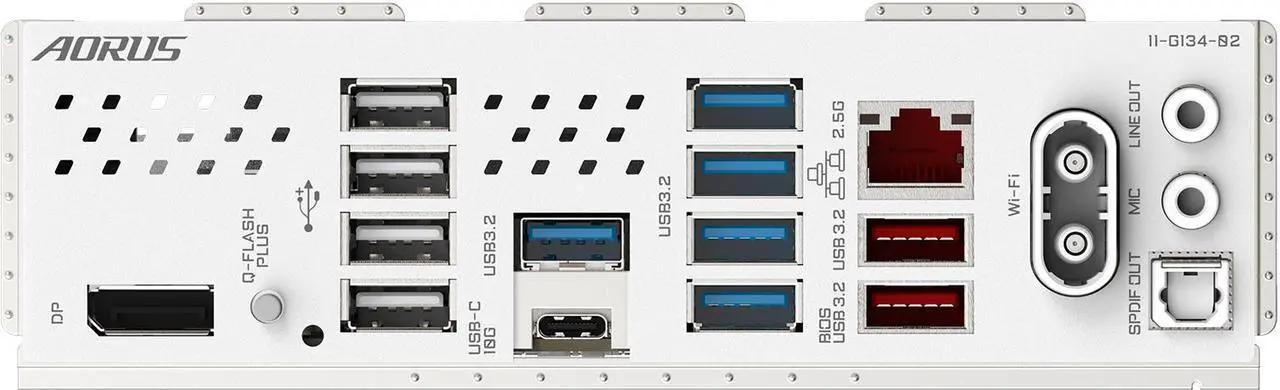

Rear Panel Ports
Back I/O Ports:1 x DisplayPort 4 x USB 2.0/1.1 1 x USB Type-C USB 3.2 Gen 2 5 x USB 3.2 Gen 1 1 x RJ-45 2 x USB 3.2 Gen 2 Type-A 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out 1 x Q-Flash Plus button
Video Ports:Display Port
HDMI:1 x HDMI port
RJ45:1 x RJ45
DisplayPort:1 x DisplayPort
USB 3.1:8 x USB 3.1
USB 3.0:8 x USB 3.0
USB 1.1/2.0:8 x USB 2.0/1.1 ports
USB Type-C:1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
S/PDIF Out:1 x Optical
Game/MIDI Ports:0
Audio Ports:2 Ports
Internal I/O Connectors
Onboard USB:1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0/1.1 headers
Physical Spec
Form Factor:ATX
LED Lighting:None RGB
Dimensions (W x L):30.5cm x 24.4cm
Power Pin:24 Pin
Software Feature
Windows 11:Supported
✅ In Stock (1 available)
Quantity:
1
