GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5

450,000 IQD

Brand:GIGABYTE

Model:X870 AORUS ELITE WIFI7 ICE

CPU Socket Type:AM5

CPU Type:Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots:4x288pin (DDR5)

Memory Standard:DDR5 5200

Maximum Memory Supported:256GB

Channel Supported:Dual Channel

ECC Supported:Non-ECC

Buffer Supported:Un-buffered

Memory Feature:Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Expansion Slots

PCI Express 5.0 x16:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Devices

Serial ATA (SATA) 4 x SATA 6Gb/s

M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

Onboard Audio

Audio Chipset:Realtek ALC1220

Audio Channels:7.1 Channels

Onboard LAN

Max LAN Speed:2.5Gbps

Wireless LAN:Wi-Fi 802.11 be

Bluetooth:BLUETOOTH 5.4

Rear Panel Ports

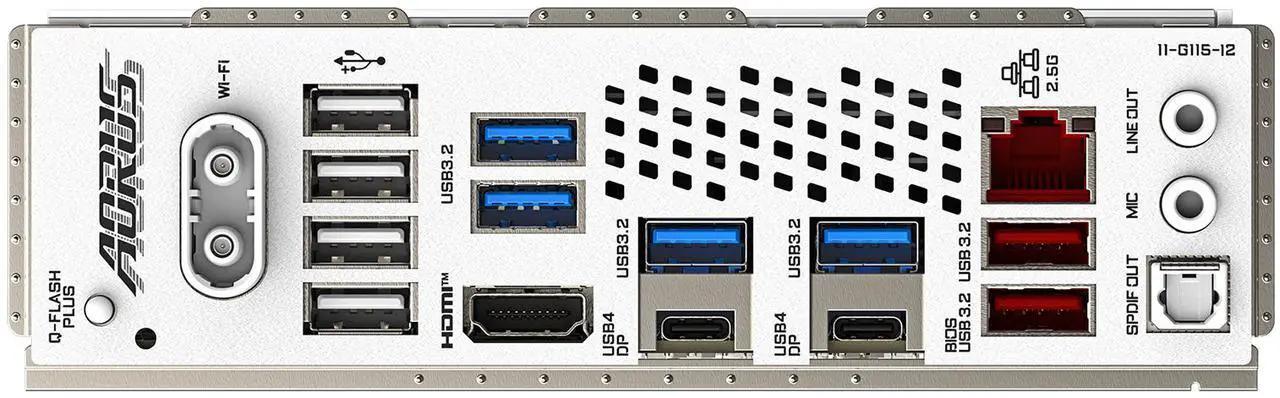

Back I/O Ports

1 x Q-Flash Plus button

1 x HDMI port

2 x antenna connectors (2T2R)

2 x USB4 USB Type-C ports (DisplayPort)

2 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

Internal I/O Connectors

Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

Other Connectors 1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port

1 x power button

1 x reset button

2 x temperature sensor headers

1 x reset jumper

1 x Clear CMOS jumper

Physical Spec

Form Factor:ATX

Dimensions (W x L):12.0" x 9.6"

Power Pin:1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors
