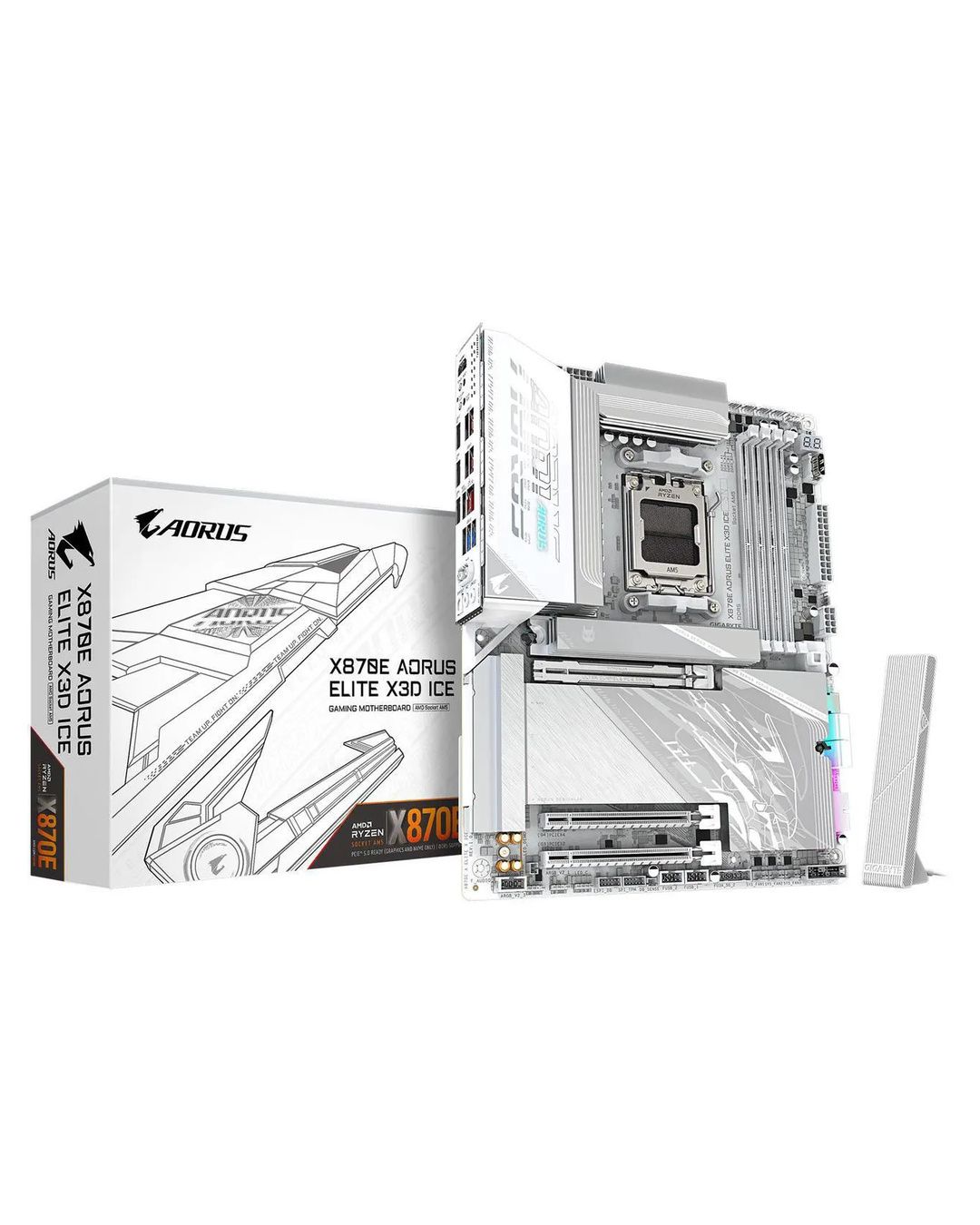

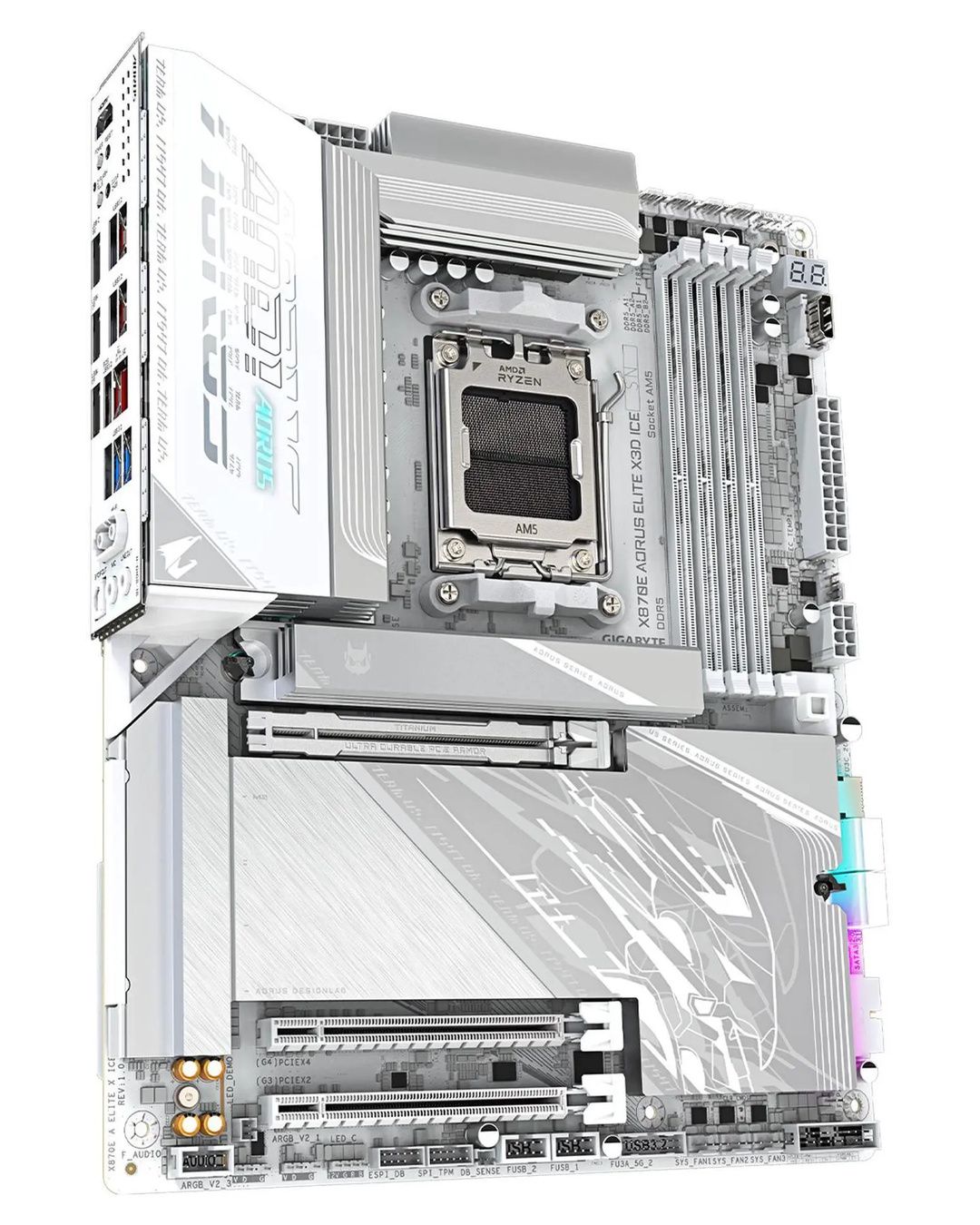

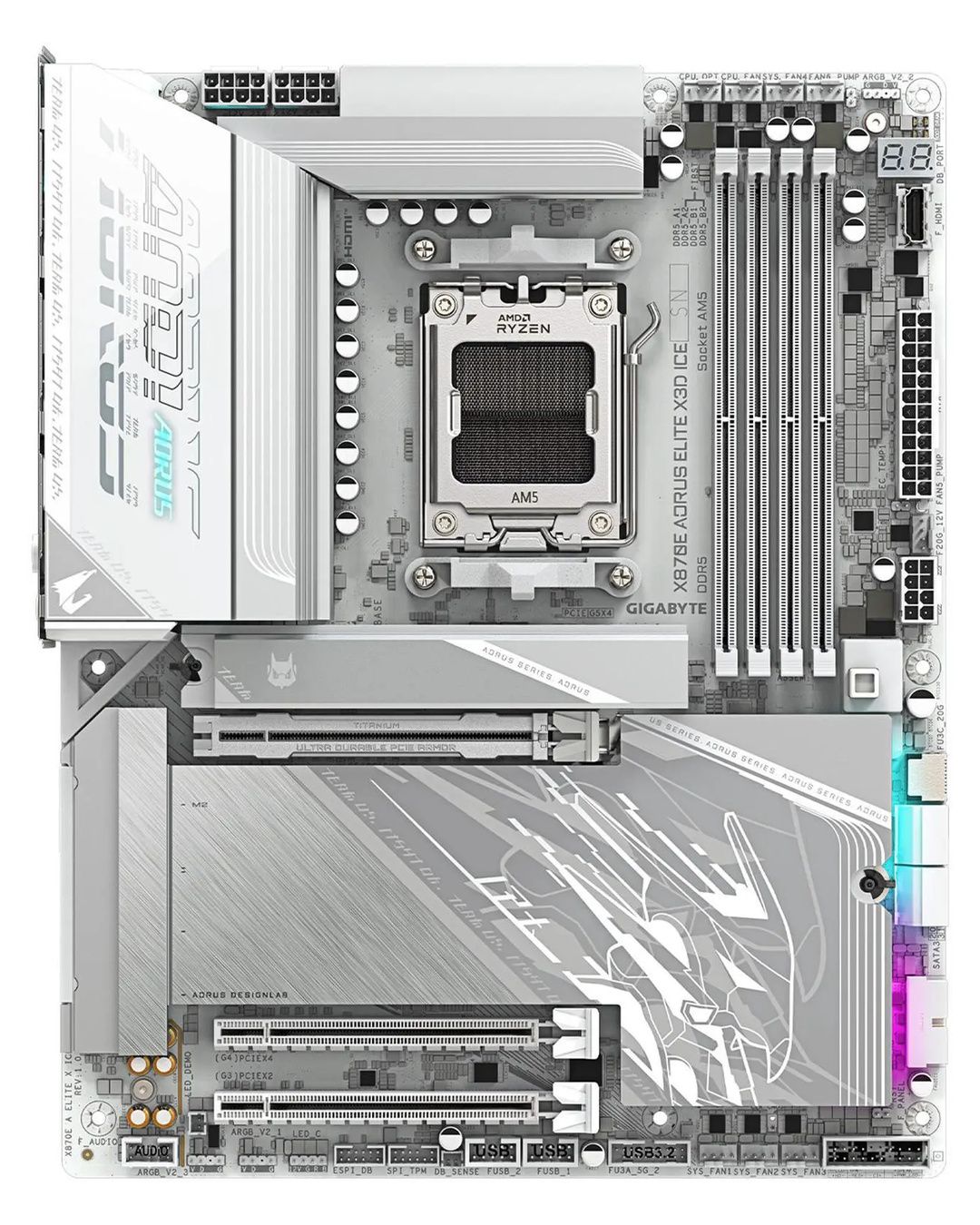

GIGABYTE X870E AORUS ELITE X3D ICE AM5 AMD X870E ATX

605,000 IQD

Brand:GIGABYTE
Model:X870E AORUS ELITE X3D ICE

Supported CPU

CPU Socket Type:AM5
CPU Type:Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset:AMD X870E

Memory

Number of Memory Slots:4x288pin (DDR5)
Memory Standard:Up to DDR5 9000(O.C)
Maximum Memory Supported:256GB
Channel Supported:Dual Channel
Memory Performance Profile:AMD EXPO / Intel XMP 3.0
ECC Supported:Non-ECC
Buffer Supported:Un-buffered

Expansion Slots

PCI Express 5.0 x16:1 x PCI Express x16 slot (PCIEX16)

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Devices

M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen 9000 Series Processors.

Onboard Audio

Audio Chipset:Realtek ALC1220
Audio Channels:7.1 Channels

Onboard LAN

Max LAN Speed:5Gbps
Wireless LAN:Wi-Fi 802.11 be
Bluetooth:BLUETOOTH 5.4

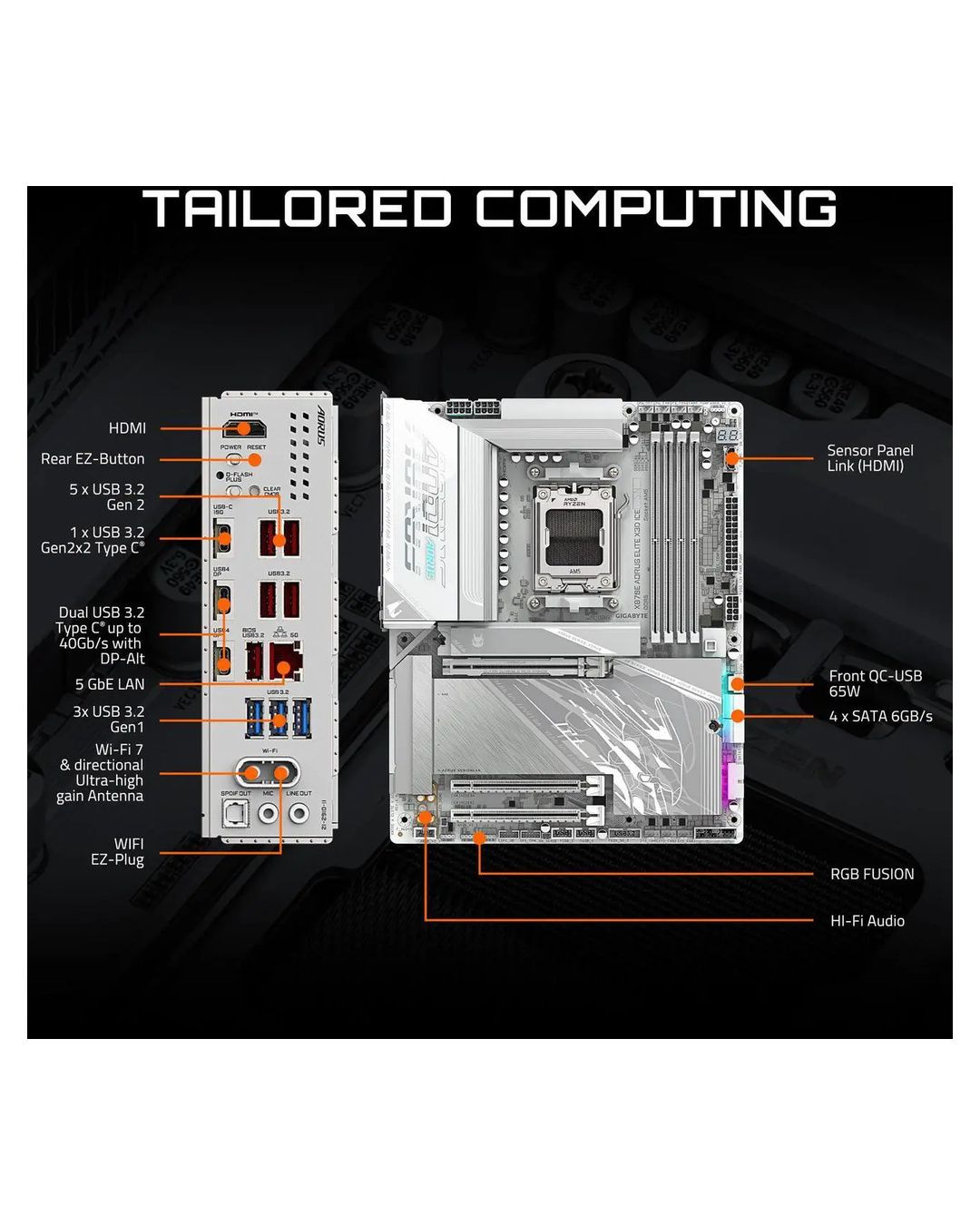

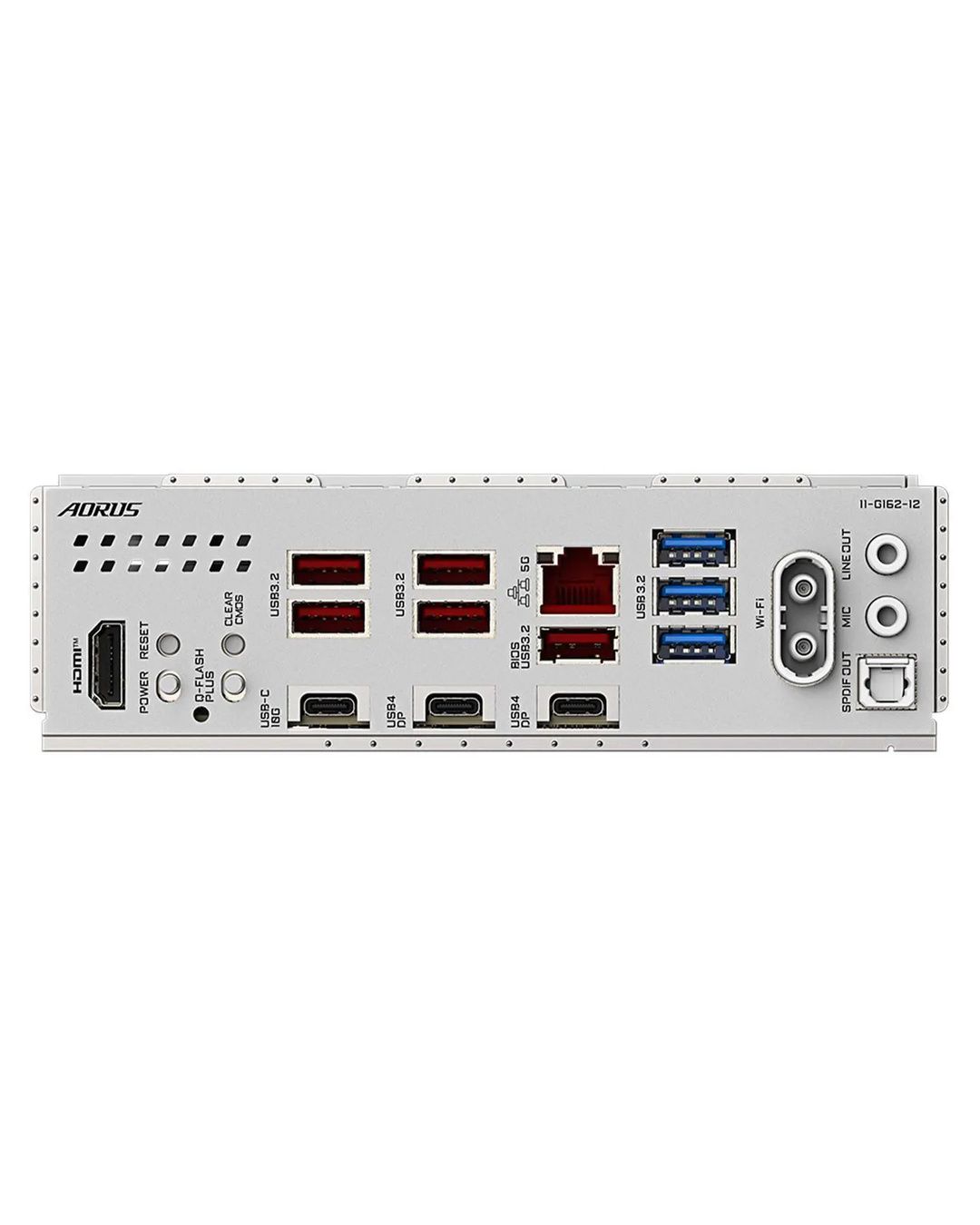

Rear Panel Ports

Back I/O Ports 1 x HDMI port (Note)

1 x reset button

1 x power button

1 x Clear CMOS button

1 x Q-Flash Plus button

5 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C port, with USB 3.2 Gen 2 support

2 x USB4 USB Type-C ports (DisplayPort (Note))

1 x RJ-45 port

3 x USB 3.2 Gen 1 ports

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

Internal I/O Connectors

Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

Other Connectors 1 x PCIe power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x noise detection header

Physical Spec

Form Factor:ATX
Dimensions (W x L):12.0" x 9.6"
Power Pin:1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

Software Feature

BIOS Feature 1 x 512 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
