Brand:GIGABYTE
Series:AORUS

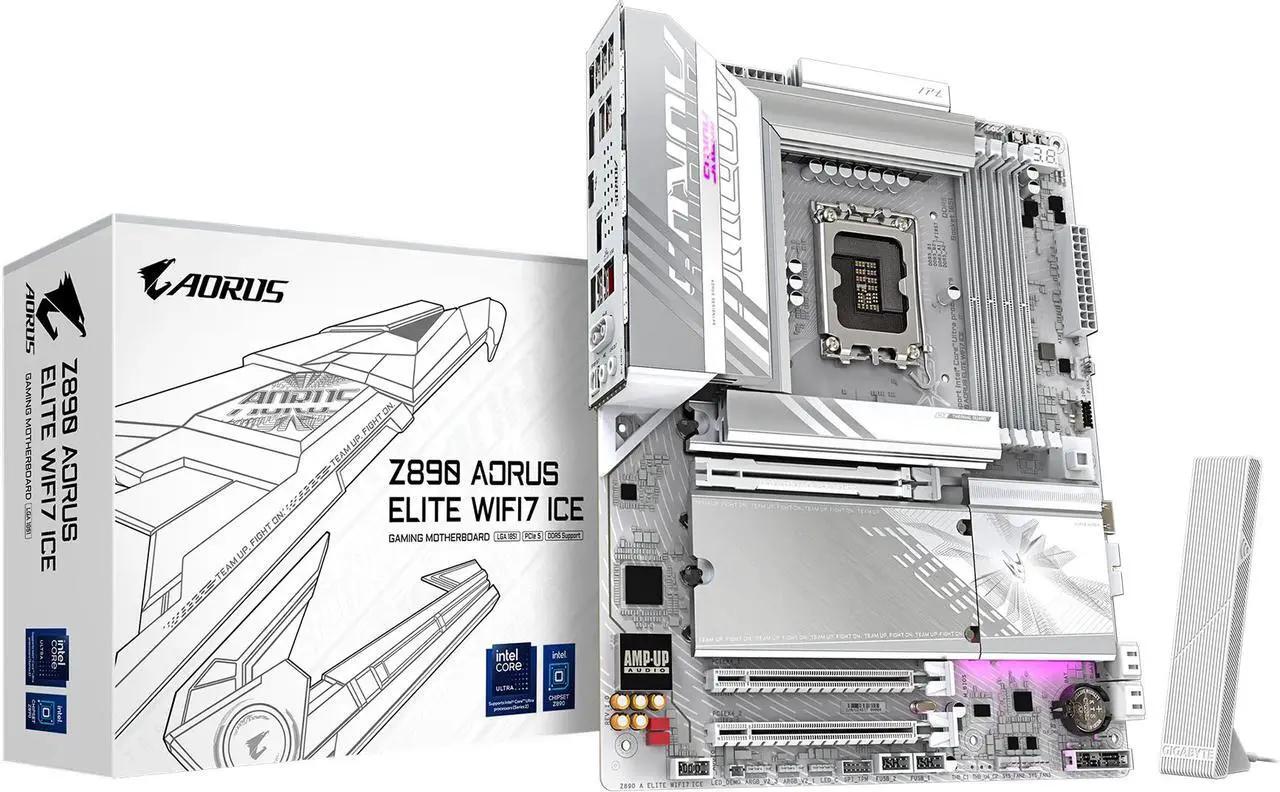

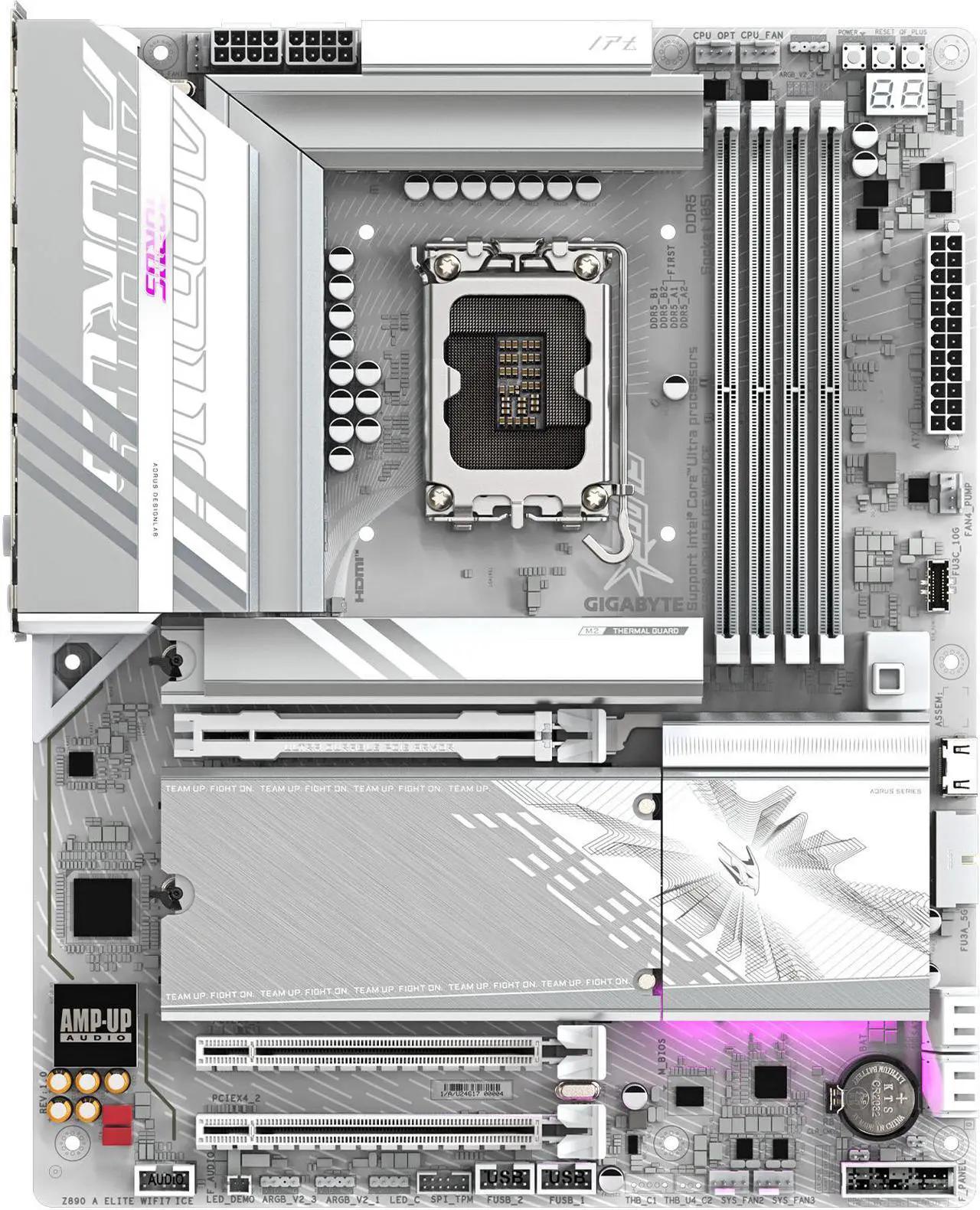

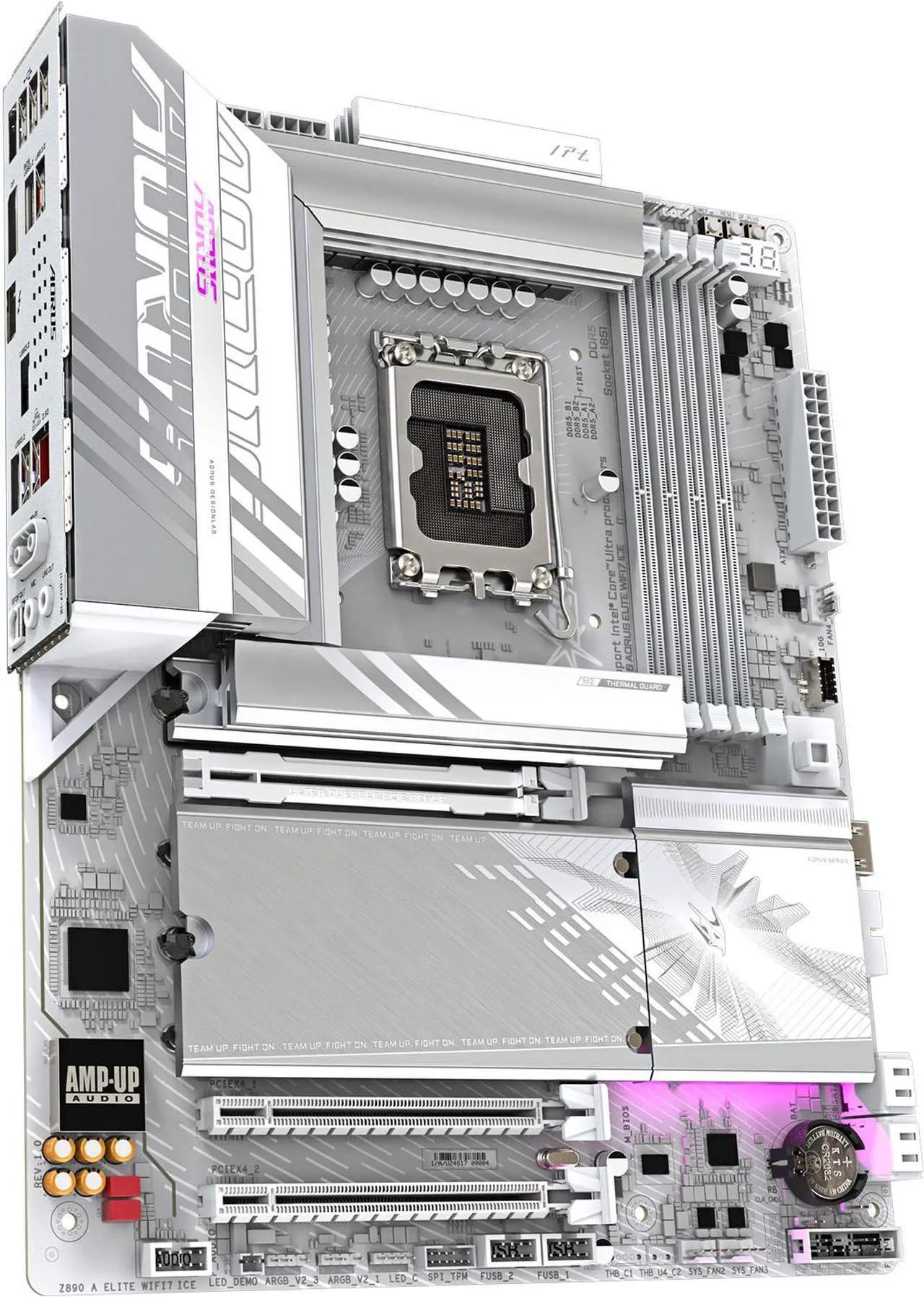

Model:Z890 AORUS ELITE WF7 ICE
Supported CPU
CPU Socket Type L:GA 1851
CPU Type:Intel Core Ultra Processors (Series 2)
Chipsets
Chipset:Intel Z890
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard:DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200
Maximum Memory Supported:256GB
Channel Supported:Dual Channel
Memory Feature:Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Expansion Slots
PCI Express 5.0 x16:1 x PCI Express 5.0 x16
PCI Express 4.0 x16:2 x PCI Express 4.0 x16
Storage Devices
Serial ATA (SATA):4 x SATA 6Gb/s
M.2 4 x M.2
Onboard Audio
Audio Channels:7.1 Channels
Onboard LAN
Max LAN Speed:2.5Gbps
Wireless LAN:WIFI 7
Rear Panel Ports

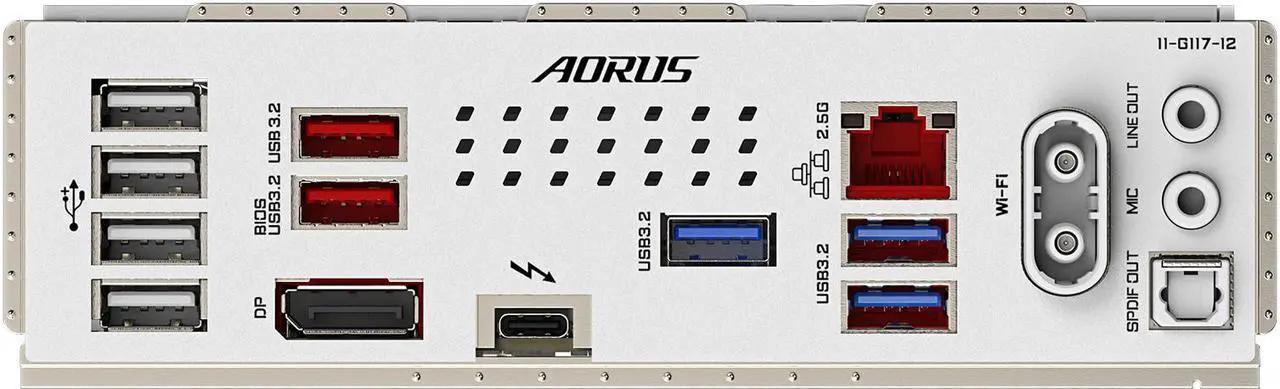

Back I/O Ports 1 x DisplayPort / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Thunderbolt 4 / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen1
Software Feature
Windows 11 Supported
Physical Spec
Form Factor ATX
