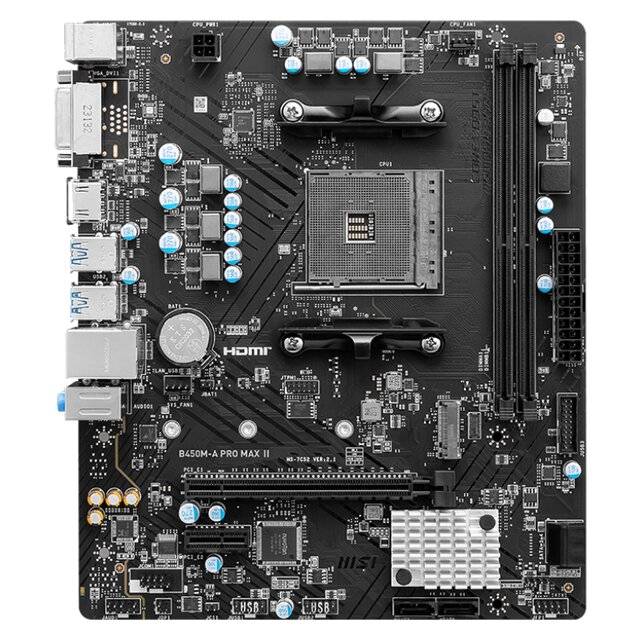

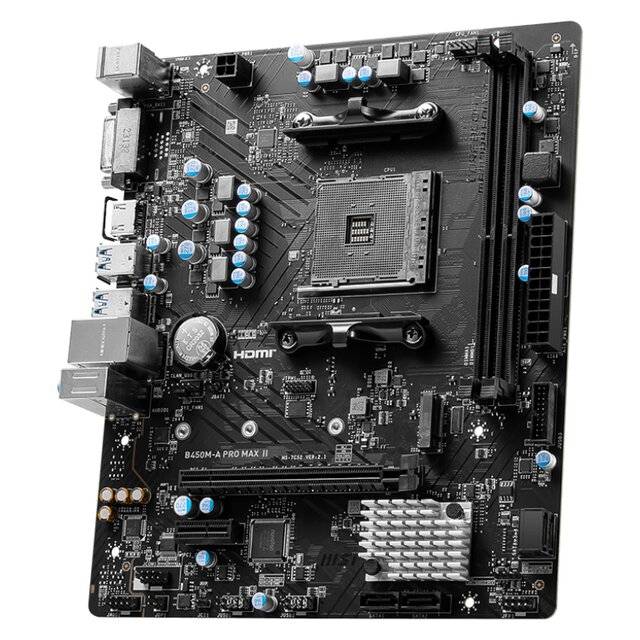

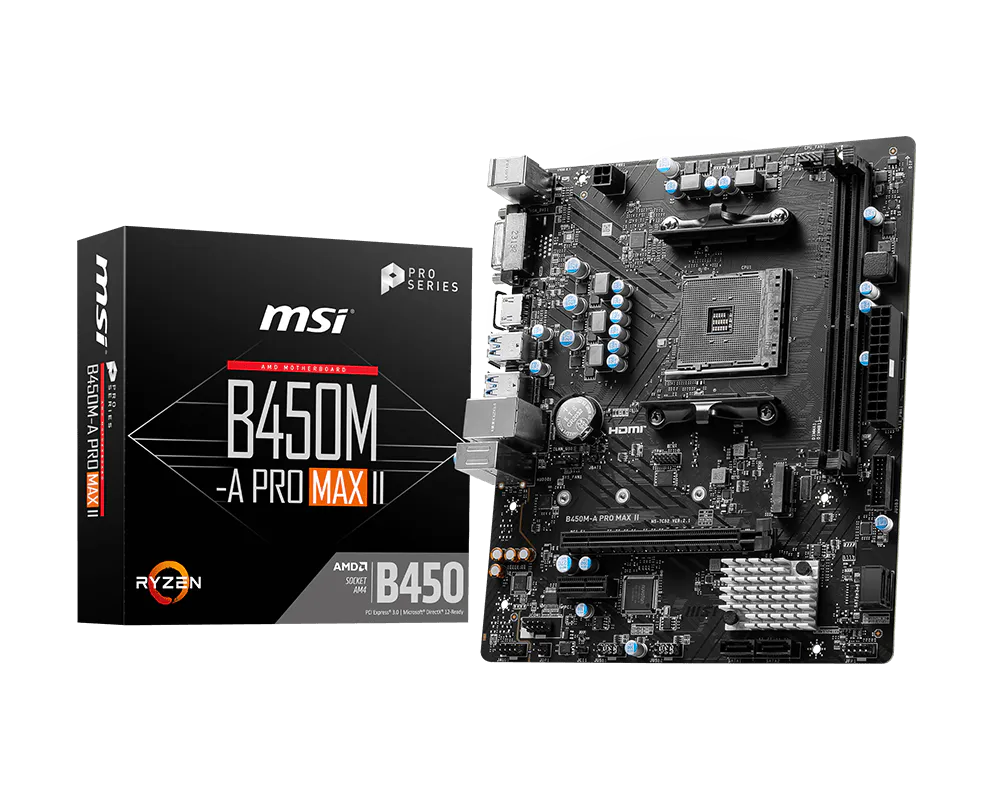

MSI B450M-A PRO MAX II AM4 Motherboard
140,000 IQD
CPU & Performance:
Chipset: AMD B450.
CPU Socket: AM4.
Supports Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series / 2000 / 2000 G-Series / 1000 Series processors.
Supports Athlon processors with Radeon Vega Graphics.
Main expansion slot: PCIe 3.0 x16 from CPU.
Additional expansion slot: PCIe 2.0 x1 from chipset.
Memory:
Memory Slots: 2 × DDR4 DIMM.
Maximum Memory: 64GB.
Supports memory speeds up to DDR4 4133MHz via A-XMP OC.
Supports Dual-Channel mode.
Supports Non-ECC / Unbuffered UDIMM memory.
Supports ECC UDIMM in Non-ECC mode.
Supports A-XMP memory overclocking.
Storage:
1 × M.2 slot.
Supports PCIe 3.0 x4 / SATA Mode.
Supports M.2 2280 / 2260 / 2242 devices.
4 × SATA 6Gb/s ports.
Supports RAID 0 / RAID 1 / RAID 10 for SATA storage.
Graphics & Audio:
HDMI 2.0b with HDR, supporting up to 4K 60Hz.
DVI-D output supporting up to 1920×1200 @ 60Hz.
Display outputs are available only with processors featuring integrated graphics.
Audio Codec: Realtek ALC897.
7.1-Channel High Definition Audio.

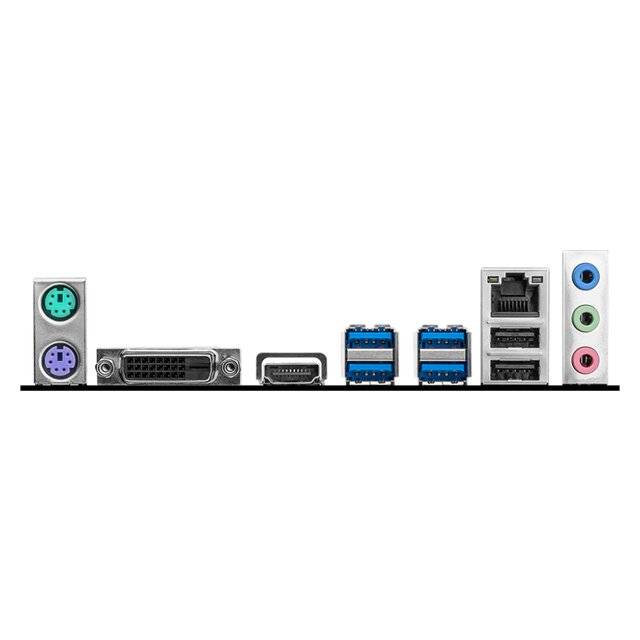

Connectivity & Ports:
Realtek RTL8125 2.5Gbps LAN.
2 × rear USB 2.0 ports.
4 × rear USB 5Gbps Type-A ports.
4 × front USB 2.0 ports.
2 × front USB 5Gbps Type-A ports.
Keyboard/Mouse port.
DVI-D port.
HDMI port.
Audio connectors.
Internal I/O:
ATX_PWR power connector.
CPU_PWR power connector.
CPU Fan connector.
System Fan connector.
2 × Front Panel connectors.
Chassis Intrusion connector.
Front Audio connector.
COM Port connector.
TPM 2.0 header.
Internal USB 2.0 headers.
Internal USB 5Gbps Type-A headers.
Recommended Uses:
Budget and mid-range Gaming PCs using AM4 processors.
Everyday and productivity systems.
Ryzen 5000 and Ryzen 3000 builds.
Systems using a dedicated graphics card.
Builds requiring 2.5Gbps LAN and M.2 NVMe storage.
✅ In Stock (10 available)
