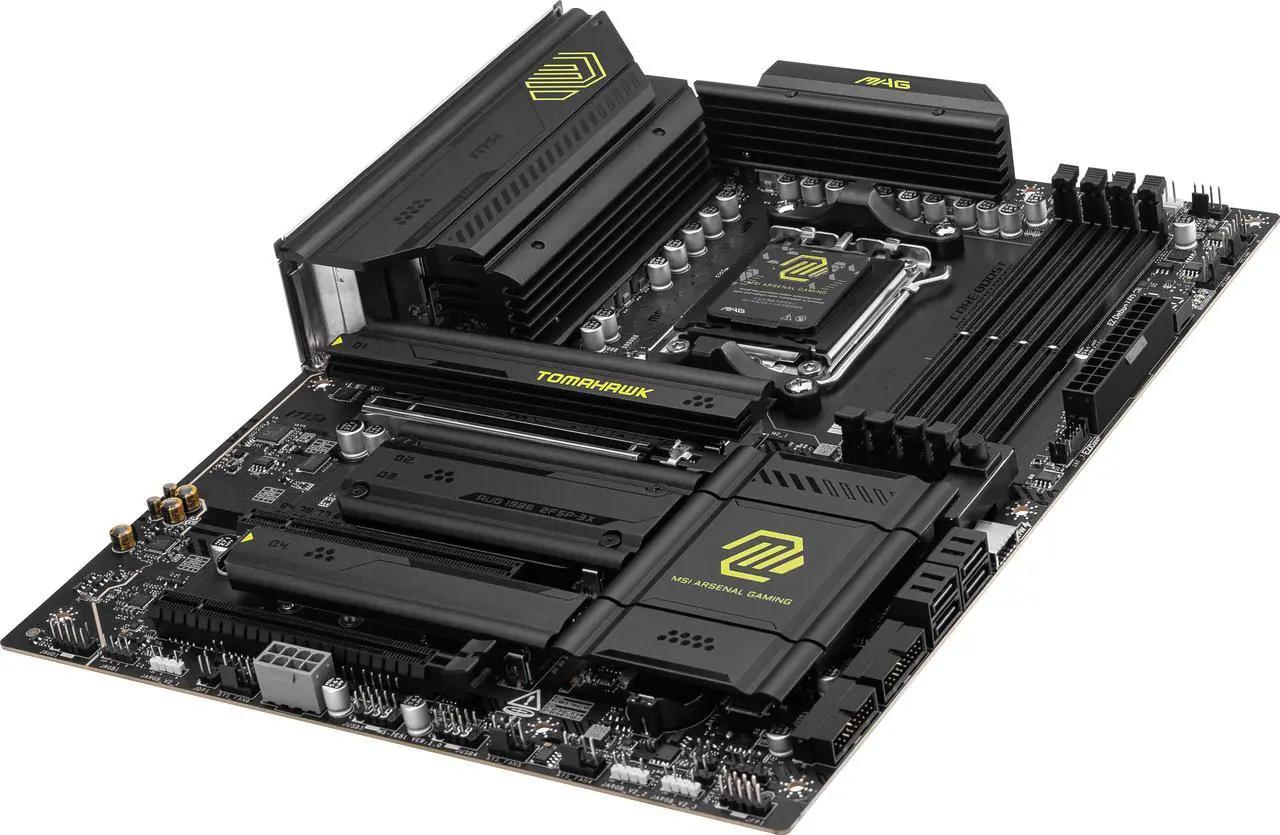

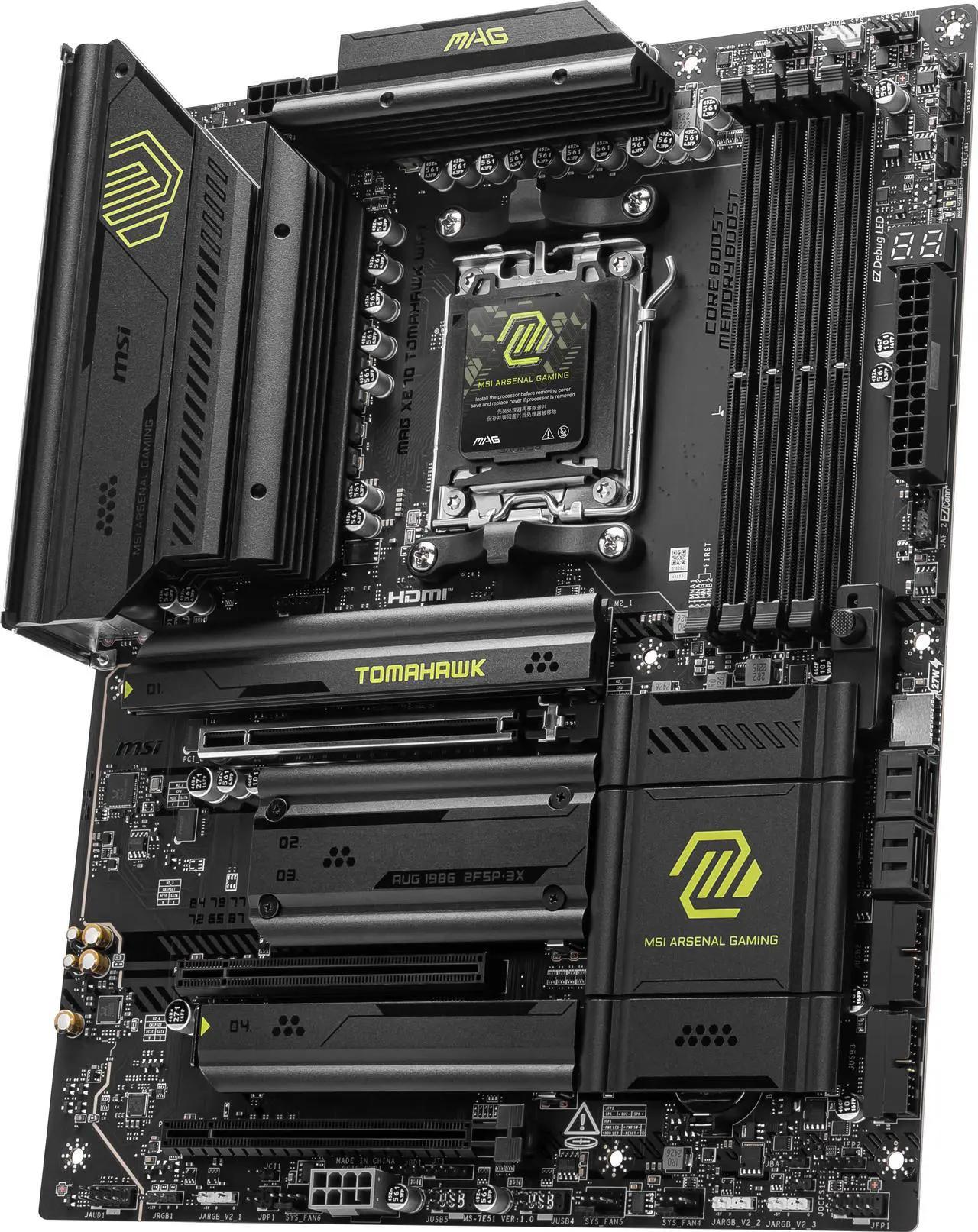

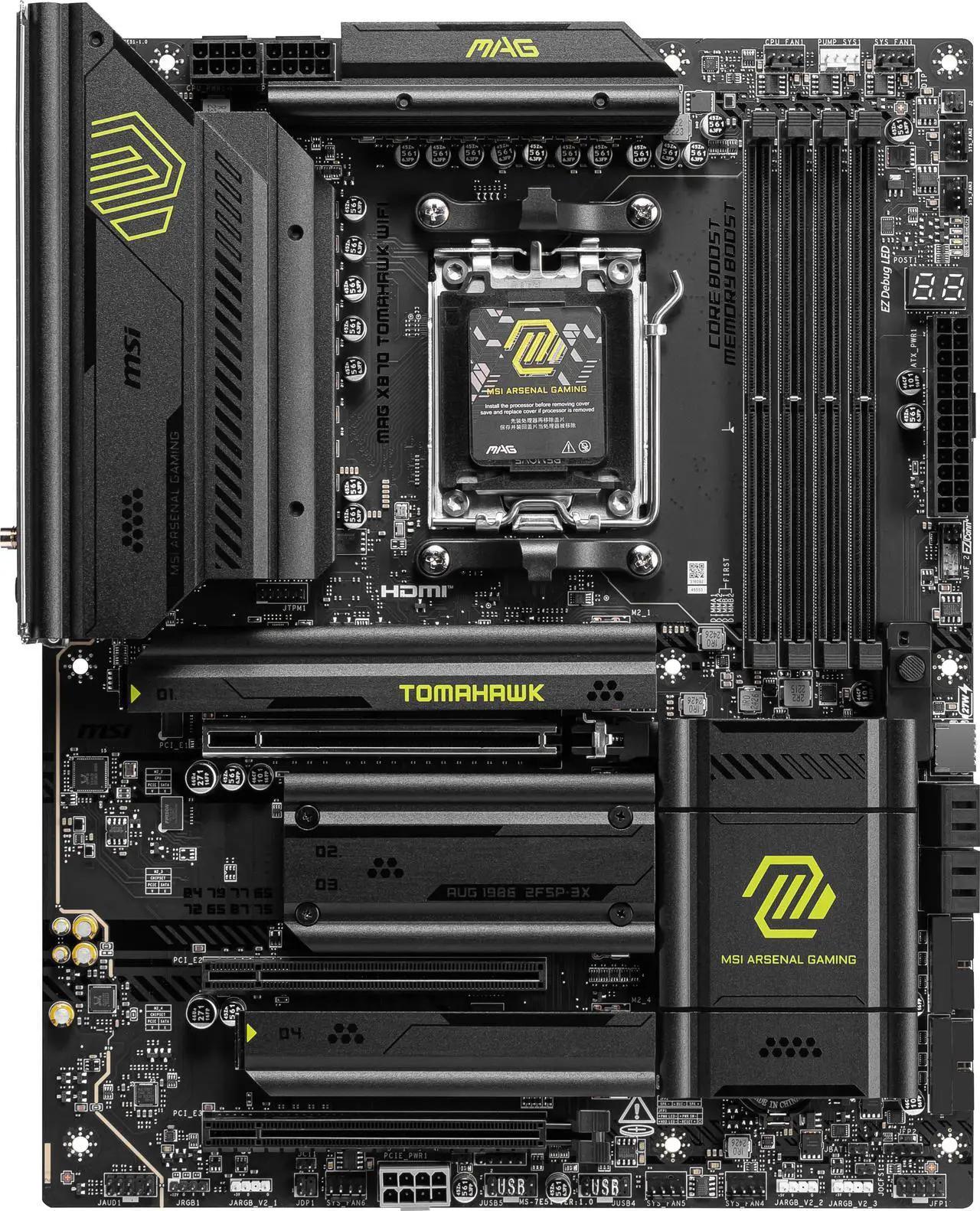

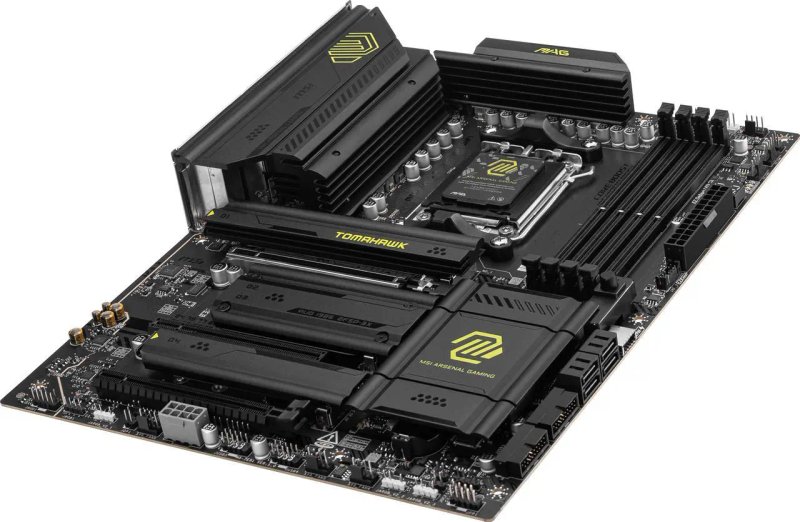

MSI MAG X870 TOMAHAWK WIFI AM5

Supported CPU

Chipsets

Memory

Expansion Slots

Storage Devices

M.2 M2_1 slot (From CPU)

- Supports up to PCIe 5.0 x4

- Supports 2280/110 storage devices

M2_2 slot (From CPU)

- Supports up to PCIe 5.0 x4

- Supports 2260/80 storage devices

M2_3 slot (From Chipset)

- Supports up to PCIe 4.0 x2

- Supports 2260/80 storage devices

M2_4 slot (From Chipset)

- Supports up to PCIe 4.0 x4

- Supports 2260/80 storage devices

* The M2_2 slot will be unavailable when using Ryzen 5 8500G processor.

** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot

SATA RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Onboard LAN

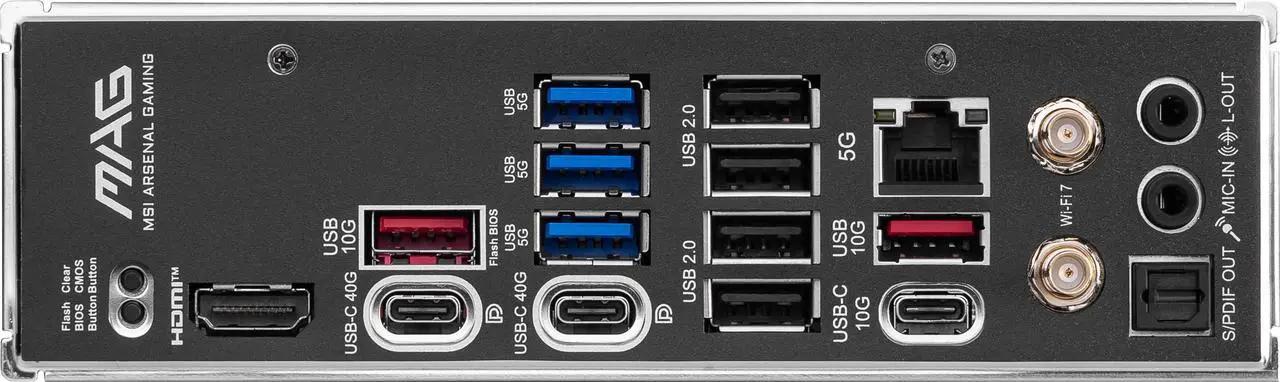

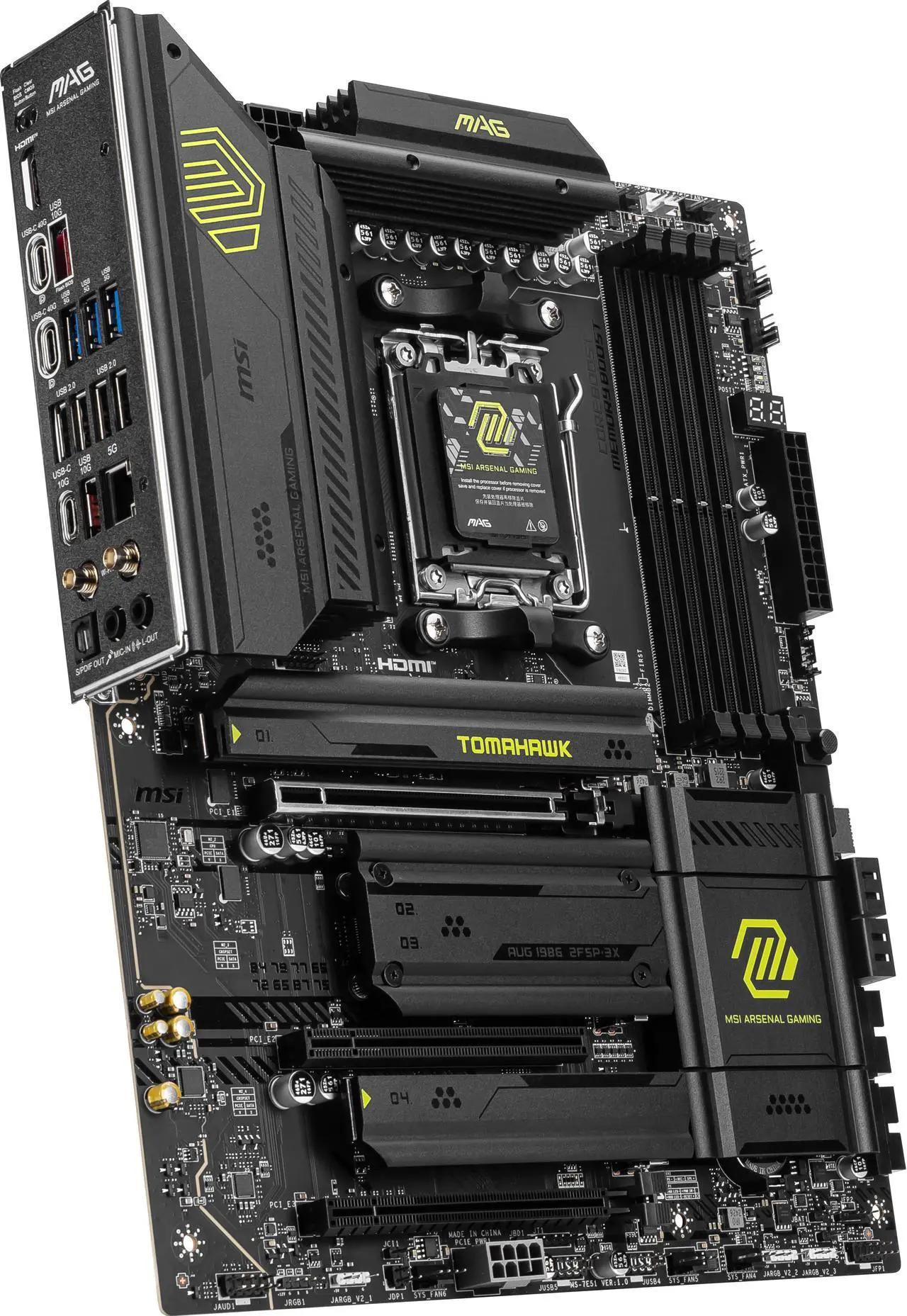

Rear Panel Ports

Back I/O Ports 1 x Flash BIOS button

1 x Clear CMOS button

1 x HDMI port

1 x USB 10Gbps Type-A (From CPU)

1 x USB 10Gbps Type-A (From X870 chipset)

1 x USB 10Gbps Type-C (From X870 chipset)

2 x USB 40Gbps Type-C (From ASM4242)

3 x USB 5Gbps Type-A (From GL3523)

4 x USB 2.0 Type-A ports (From GL850)

1 x 5Gbps LAN (RJ45) port

2 x Wi-Fi Antenna connectors

2 x audio jacks

1 x Optical S/PDIF Out connector

Internal I/O Connectors

Onboard USB AMD X870 Chipset

- 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging

- 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports

- 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports

Other Connectors Fan Connectors

- 1x 4-pin CPU fan connector

- 6x 4-pin system fan connectors

- 1x 4-pin water-pump/ system fan connector

- 1x EZ Conn-Header V2 (JAF_2 with 11-Pin)

System Connectors

- 1x Front panel audio connector

- 2x System panel connectors

- 1x Chassis Intrusion connector

- 1x TPM module connector

Jumpers

- 1x Clear CMOS jumper

- 1x OC safe boot BIOS jumper

Physical Spec

3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors

4 x EZ Debug LED

1 x 2-Digit Debug Code LED

1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)

Dimensions (W x L) 12.0" x 9.6"

Power Pin 1 x 24-pin Power Connector (ATX_PWR)

2 x 8-pin Power Connector (CPU_PWR)

1 x 8-pin Power Connector (PCIE_PWR)

Thermal Features

- K7 MOSFET thermal pad / K5 Extra choke pad

- Extended Heatsink Design

- Fan headers (CPU + Combo+PUMP + SYSTEM)

- M.2 Shield Frozr

Performance

- Lightning Gen 5 PCI-E Slot / M.2

- Lightning Gen 4 PCI-E Slot / M.2

- Front USB Type-C

- USB with PD

- Supplemental PCIe Power Connector

- Core Boost

- Dual CPU Power

- Memory Boost

- Server Grade PCB

- 2oz Copper thickened PCB

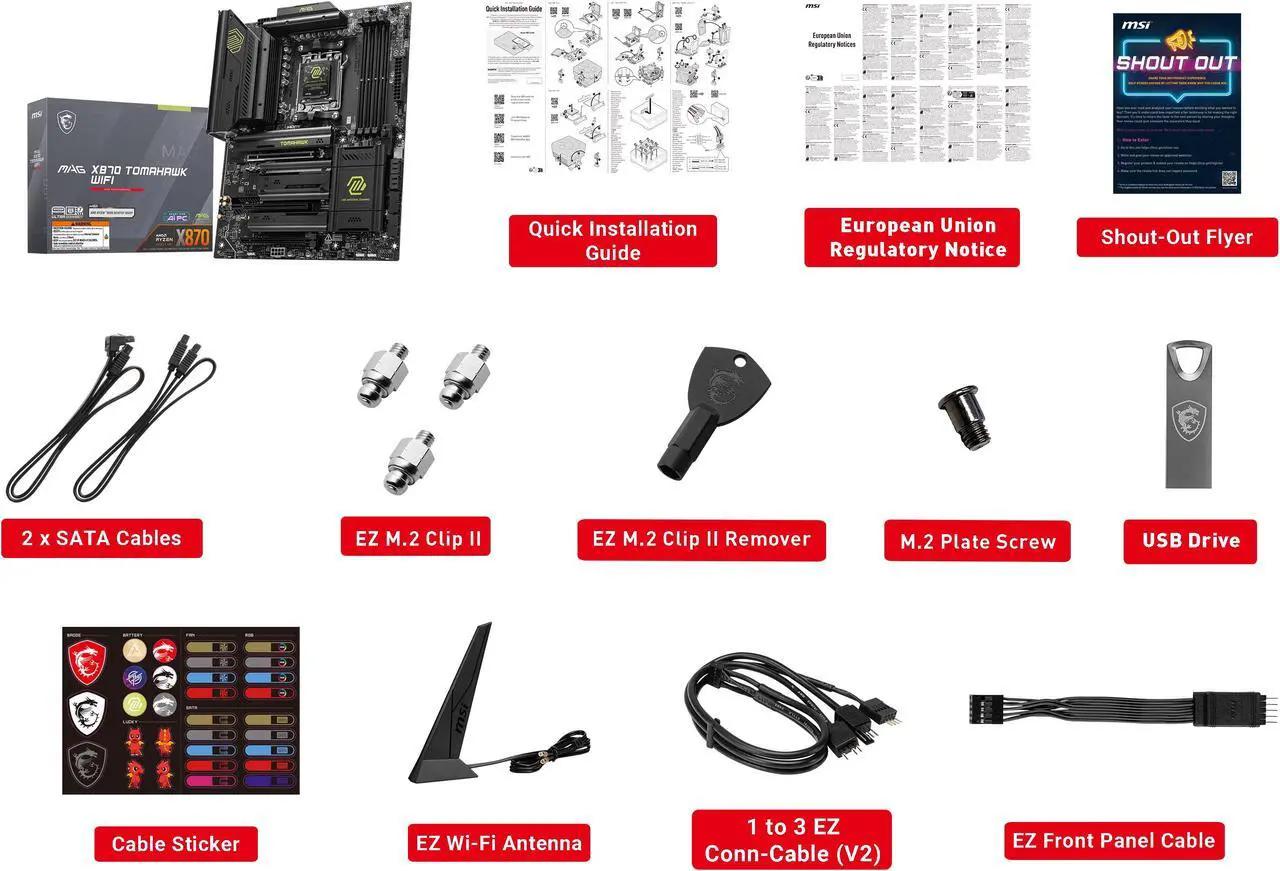

DIY Friendly

- EZ M.2 Sheild Frozr II

- EZ M.2 Clip II

- EZ PCIe Release

- Flash BIOS Button

- Clear CMOS Button

- Pre-installed I/O Shield

- EZ Antenna

- EZ Front Panel Cable

- EZ Conn-Design

- PCI-E STEEL ARMOR II

- EZ Digi-Debug LED

- EZ LED Control

Audio

- Audio Boost 5

RGB Support

- Mystic Light

- Mystic Light Extension (RGB)

- Mystic Light Extension (ARGB V2)

- Ambient Devices Support

BIOS

- Click BIOS X

- AI Boost

- Performance Preset
