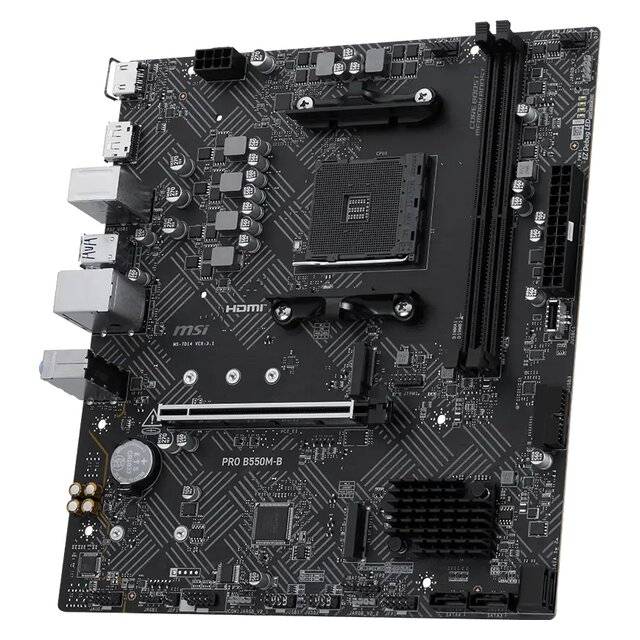

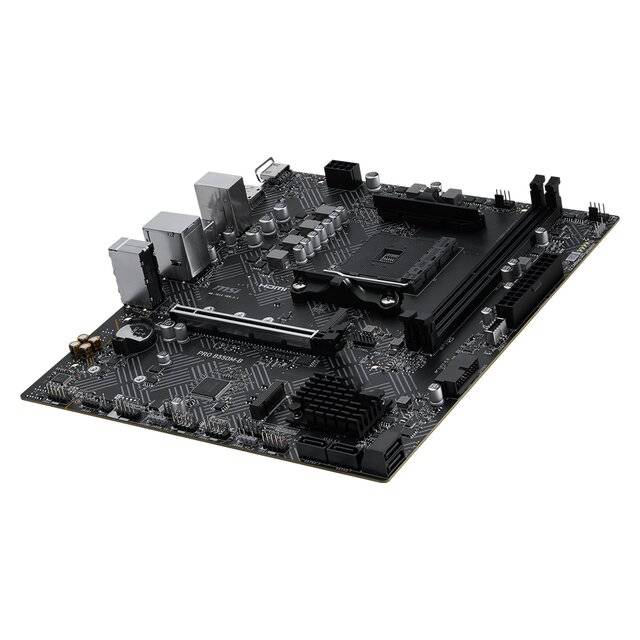

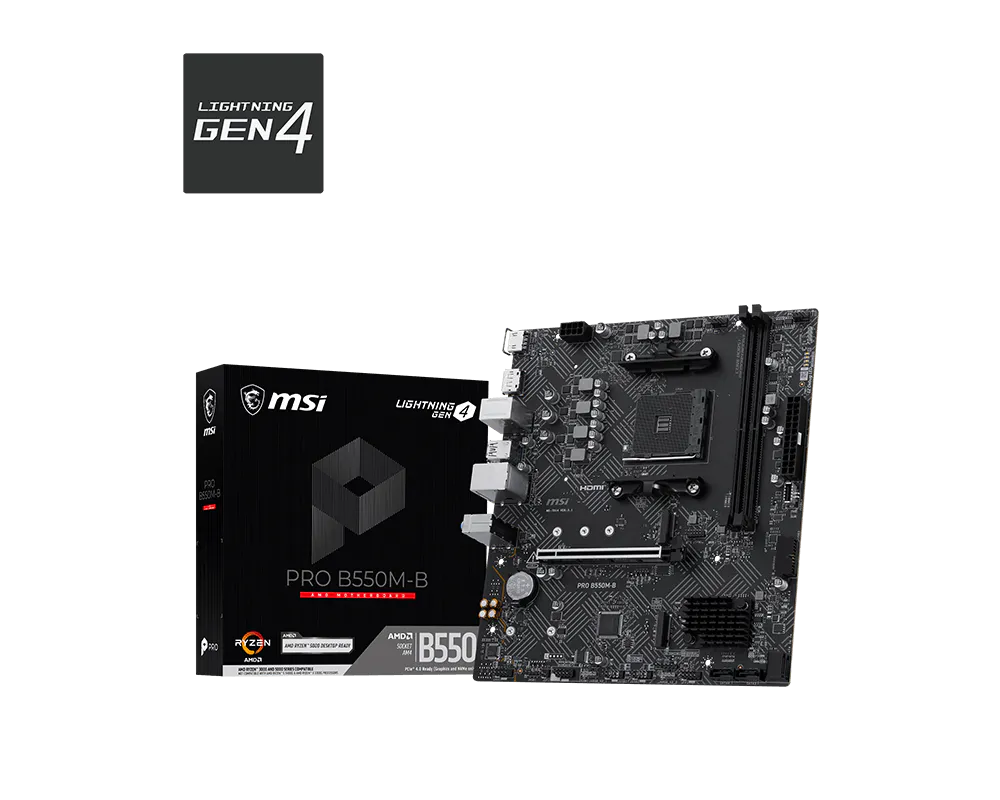

MSI Pro B550M-B AMD Motherboard (Black)
160,000 IQD
CPU & Chipset:
Chipset: AMD B550.
CPU Socket: AM4.
Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series processors.
Memory:
Memory Slots: 2x DDR4 DIMM.
Maximum Memory: 64GB.
Memory Speeds: DDR4 2667 up to DDR4 4600+ MT/s via A-XMP OC.
Dual-Channel support.
JEDEC speed support.
Non-ECC Unbuffered memory support.
Memory overclocking through A-XMP OC Mode.
Graphics & Display:
HDMI 2.1 supporting up to 4K 60Hz.
DisplayPort 1.2 supporting up to 4K 60Hz.
Display outputs are available when using a processor with integrated graphics.
Expansion:
PCIe 4.0 x16 slot from the CPU.
Storage:
2x M.2 slots.
M.2_1: PCIe 4.0 x4 / SATA, supporting 2242 / 2260 / 2280 devices.
M.2_2: PCIe 3.0 x4, supporting 22110 / 2280 devices.
4x SATA 6Gbps.
SATA RAID support: RAID 0 / 1 / 5 / 10.
M.2 NVMe RAID support: RAID 0 / 1 / 10.
Audio & Networking:
Audio Codec: Realtek ALC897.
7.1-Channel High Definition Audio.
LAN: Realtek RTL8111H 1Gbps LAN.

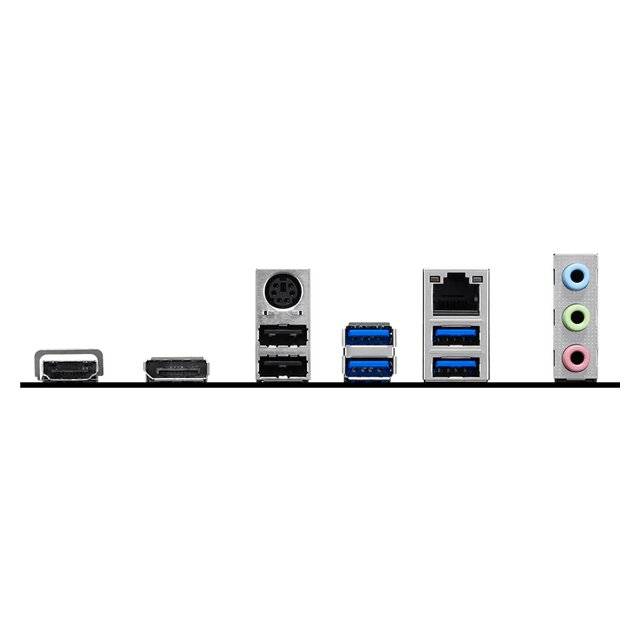

USB:
2x USB 2.0 rear.
4x USB 2.0 front.
4x USB 5Gbps Type-A rear.
2x USB 5Gbps Type-A front.
1x USB 5Gbps Type-C front.
Internal I/O:
1x ATX Power Connector.
1x CPU Power Connector.
1x CPU Fan Header.
1x System Fan Header.
2x Front Panel Headers.
1x Chassis Intrusion Header.
1x Front Audio Header.
1x COM Port Header.
3x Addressable V2 RGB Headers.
1x RGB LED Header.
1x TPM 2.0 Header.
Recommended Uses:
Gaming PCs based on the AM4 platform.
Systems using Ryzen 5000 processors.
Gaming and everyday-use systems.
Builds using a dedicated graphics card through PCIe 4.0 x16.
Systems requiring multiple M.2 NVMe storage drives.
✅ In Stock (10 available)
